Powerful D6 Series 10" sub

You'll spend a Saturday afternoon giving your ride the old buff 'n shine — now it's time to clean up your bass response for a more polished sound. Diamond Audio designed D6 Series subwoofers for clean, cool-running performance so you'll hear potent, refined bass that makes for a very entertaining ride, even if it's just across town.

Heat dissipating alloy woofer

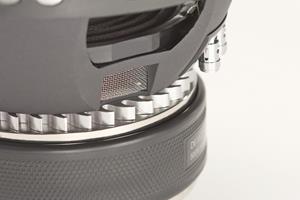

This 10" D6 sub features a rigid, lightweight anodized alloy cone held in place by a sturdy, special-design rubber surround. Diamond Audio uses an aluminum-finned radial heatsink to pull damaging heat away from the motor assembly — the alloy cone and aluminum dust cap also direct heat upwards and outwards, so it doesn't end up trapped in your subwoofer enclosure.

High power handling from 3" voice coils

Hefty 3" aluminum-coated copper voice coils dissipate even more heat for exceptional power handling. The dual 4-ohm voice coils give you more options for wiring the sub into your system, and make it easy to add a second D6 sub later on.

Non-resonant aluminum basket

The cast aluminum basket gives this sub the stable foundation it needs to deliver faithful, uncolored bass for the lifetime of your system. Diamond Audio's proprietary O2 casting technique creates a denser, less porous basket that virtually eliminates unwanted resonance, so your favorite music sounds just as the artist intended.

• 10" subwoofer with dual 2-ohm voice coils
• anodized alloy cone
• ethylene propylene diene monomer (EPDM) rubber surround
• cast aluminum basket
• power range: 50-500 watts RMS (1000 watts peak power)
• frequency response: 23-250 Hz
• sensitivity: 84 dB
• top-mount depth: 6-5/16"
• sealed box volume: 0.625 cubic feet
• ported box volume: 1.25 cubic feet
