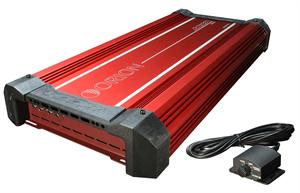

Orion HCCA8000.1D v2 HCCA 8000 RMS at 1 Ohm Class D Mono High Current Competition Subwoofer Amplifier
|
HCCA8000.1D v2
|
Retail Price: $1,799.99
Thunder AV Price: $1,599.99
You Save: $200.00 (11 %)
Call / Email for Availability
Detailed Description
- Orion has transformed the HCCA amplifiers to a super powerful sound machine. In the new class D HCCA amplifiers for woofers, the power is being calculated at only 12.6 volts and only with a 0.5% THD which makes these amplifiers very powerful ones. They are truly sound monsters starting at 5000 watts RMS up to the super powerful HCCA 20000.1d that gives an amazing and truly twenty thousand watts; something really and unbelievably amazing. All the (4) channels and (2) channels were modified by incorporating a high pass cut system that allows you to multiply by (10) the frequency and take it all the way to 15khz. Technology, quality and extreme power were combined to create efficient and very powerful amplifiers, to satisfy the most demanding customers of our industry whose satisfaction is only the best.
- POWER DESCRIPTION HCCA8000.1D
- RMS WATTS @ 4 OHM at 12.6V 4,000
- RMS WATTS @ 2 OHM at 12.6V 5,890
- RMS WATTS @ 1 OHM at 12.6V 8,100
- TOTAL POWER WATTS 16,000
- Amplifier Efficiency > 88%
- Signal to Noise ratio at rated output power and lowest > 90dB
- Remote Gain Function Yes
- Distortion at Rated Power 0.5% THD+N
- Frequency Response 15 Hz to 250Hz +/- 2.5 dB
- Linear Bandwidth 15 Hz to 250Hz +/- 3 dB
- Damping Factor 200
- Input Sensitivity(rms) 200mV to 8V
- Supply Voltage Range 9 to 16V
- Protection thermal, DC offset, short protection, undervoltage, over-voltage
- Terminal Wire Gauge Power 0 AWG, Remote 10 AWG, Ground 4 AWG, Speaker 10 AWG
- Input Impedance 24K Ohms
- Balanced input (CMRR)
- Dimensions(inches) 25.3 x 11.7 x 2.8
- Phase shift control 0 to 180
- Bass Boost 0-18dB variable
- Infrasonic(sub sonic) Filter Selectable On/Off Octave 12dB at 25Hz
