With over 10 years of experience building in-wall learning keypads, Xantech proudly introduces the latest generation in its SmartPad keypad series - the SMARTPAD LCD.

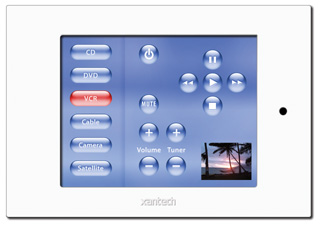

The SmartPad LCD series consists of four interactive touchpanels- a 3.9, a 5.7 and a 6.4 diagonal color graphic touchpanel and a 6.4 diagonal video touchpanel.

All functionality and screen graphics are fully programmable using Xantechs intuitive and easy to use Dragon Drop-IR programming software using either the RS232 or USB ports located behind the detachable faceplate.

Each touchpanel comes with an extensive library of built-in IR codes and the ability to learn IR codes via the Learning Eye or from Dragon Drop-IR software.

As with the other SmartPads, these new touchpanels are designed to be stand-alone controllers with the ability to output IR commands onto the standard Xantech four-wire IR bus. These new touchpanels also have the ability to transmit and receive RS232 commands utilizing the optional RS422 to RS232 Module (model RS422232).

Bezel colors include: White, Ivory, Almond, Black, Brown, Polished Brass, Polished Chrome and Satin Chrome.
6.4 diagonal, 640 x 480 pixels, 64K colors
Digital video display and video PIP capability
USB and RS232 programming interfaces
Built-in IR code library
Built-in keypad IR receiver
Stand-alone device to output IR and/or RS232 commands
Programmable via Dragon Drop-IR software
