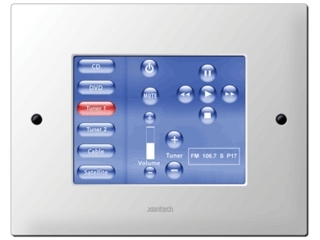

The SPLCD64G gives users the convenience and simplicity of a touchpanel controller in a self-contained unit that is easy to install, easy to program, and, perhaps best of all, easy to afford. Its 640 x 480 resolution with 64K color provides outstanding graphics and clarity..

* Fully customizable display graphics
* Fully customizable display graphics
* XDT Station feedback, and XMUSIC song title navigation window of controlled component
* Internal pre-programmed IR code library, as well as capability to learn IR commands
* Built-in IR code library
* Built-in IR receiver
* SPLCDPS1 Power supply required
* Front panel IR learning eye
* Fully compatible with the MRC88 / MRAUDIO8X8 controllers with bi-directional status indication

Power Requirements: 16VDC, 750mA
RS232 Control Port (RS422 Requires RS422232 Controller)
Text Feedback Support (From MRC88, MRAUDIO8X8, OR XDT Dual Tuner)
System Capability: MRC44CTL, MRAUDIO4X4, MRC88CTL, MRAUDIO8X8
Volume Level Feedback (MRC88CTL, MRAUDIO8X8)
Dimensions: 5.66"H x 7.76"W x 1.77"D
Weight: 2.9 lbs. (1.32 kg)
