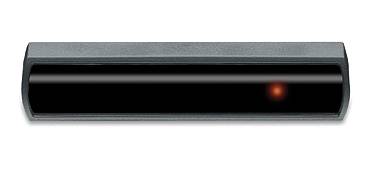

Xantech DL95M Universal Dinky Link IR Receiver , Manual Adjustment
|
DL95M
|
Retail Price: $375.00
Thunder AV Price: $219.95
You Save: $155.05 (41 %)
* Whole number only
Detailed Description
DESCRIPTION
These small IR receivers have been designed for mounting in very small
spaces. They may be mounted under shelf edges, cabinet ledges, in wall
speakers, etc. anywhere an inconspicuous appearance is desired. The high
sensitivity of these receivers allows placement behind speaker grilles and still
receive IR commands up to 100 feet away*.
FEATURES
Rear panel Sensitivity Adjustment for various ambient lighting conditions.
Ultra-wide band remote carrier frequency range.
Wire channel for clean installation.
System testing red-talk-back LED.
Includes 3-Terminal Block for easy extension to remote room locations.
SPECIFICATIONS
Infrared carrier frequency bandwidth: 25 - 100 kHz.
Reception range: Up to 100 feet.*
Reception angle: +/- 60 degrees.
Cable requirements: See INSTALLATION below.
Max. Transmission length: 1 mile using 18 gauge wire.
Maximum current output: 100mA.
Drives IR emitters through Xantech Connecting Blocks, Controllers, etc.
Dimensions: 2.55 x 0.55 x 0.35 (65mm x 14mm x 9mm).
Power requirements: +12VDC, 10mA.
* Depending on remote control output strength and ambient conditions.
