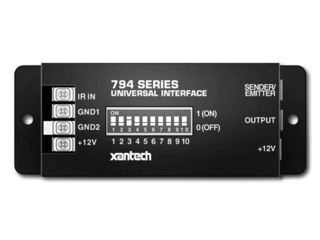

Allows any of the Xantech 3-wire IR receivers, keypads and control systems to connect
directly to the serial remote control input jack found on many audio/video components.
This eliminates the need for attaching an emitter to the front panel of the unit.
The installer, by choosing the correct model number, suffix number and DIP switch
settings, may usethese modules to control many components.

* Power requirements: 12 volts DC @ 15 milliamps. Requires 781RG Power Supply
* Connections: 4-screw terminal connector for interface with Xantech IR Receivers and other devices
* Improved clear adhesive film for attachment to IR
* 3.5 mm mono mini jack for IR emitter, 3.5 mm stereo mini jack for interface cable, 2.1 mm coaxial power jack
* Dimensions: 4 1/4" x 1 5/8" x 1" (108mm x 42mm x 26mm)
* Includes RCA-type phone plug interface cable
