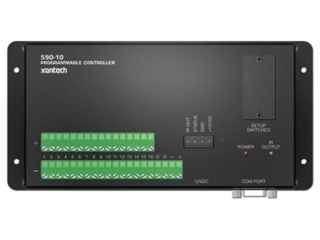

The 590-10 gives the custom installer the ability to use any push button or contact closure to initiate infrared commands. The 590-10 incorporates 16 isolated input circuits and a learning microprocessor. There are 16 pairs of screw terminals on its rear panel for use with up to 16 individual contact closures.

FEATURES

* Programmable with Universal Dragon Drop-IR Programming Software
* Multi-function sequencing for up to 40 commands per key, button, or contact closure
* Infrared output compatible with all Xantech brand IR control systems.
Use 791-44 connecting blocks for emitter expansion
* Memory: 8 Kbytes E2PROM
* IR Carrier Frequency: 31.25 kHz to 71.50 kHz
* Maximum Peak IR Signal Output Current: 100 milliamps
* COM Port: RS232 Signal Compatible

SPECIFICATIONS
* Inputs: 16 Opto-Isolators connected via 16 screw terminal pairs,
each in series with a 1,000-Ohm resistor
* Input voltage range, 5 to 30 VDC
* 12 VDC is available on the 12VDC ?+" and ?-" screw terminals
for driving inputs through external switch closures
* Banks: One with extensive macro (sequence) capacity
* Power In: 12VDC, 300mA. 2.1mm coaxial power jack, center
positive. Requires Model 782-00 or 786-00 Power Supply
* Memory: 8 kilobyte non-volatile E2PROM
* IR Carrier Frequency: 31.25kHz to 71.50kHz
* Dimensions/Weight: 8.5"W x 4.25"H x 2.875"D (216mm x108mm x 73mm) / 1.8 lbs (0.8 kg)
