Where styling and sex appeal often guide your buying decisions, performance is often compromised or even lost in favor of cosmetic treatment. At Soundstream, you, our customers, expect more for your hard-earned dollars. Not only do you want products with outstanding cosmetic styling, you EXPECT performance.

The highest performance that you have come to know and love from products bearing the Soundstream Brand. You expect our products to be the pinnacle, the reference, which raises the bar and sets a new standard of outstanding performance coupled with edgy, aggressive cosmetic design. Why settle for a pretty face or an ugly sister. Soundstream Reference series subwoofers answer the call.

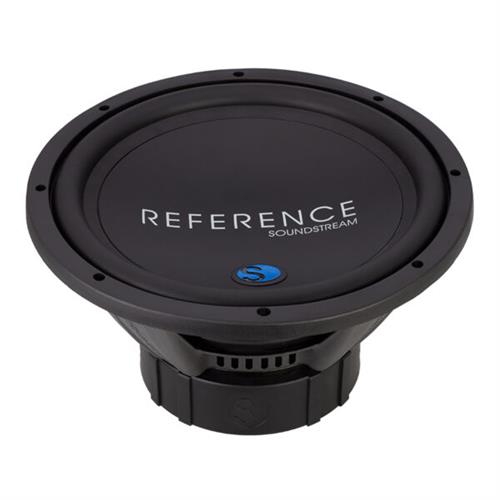

The R5.122 is equally at home in a ported or sealed enclosure, so you can choose the sound you want for your system. You can wire the two 2-ohm voice coils for either 1-Ohm or 4-Ohm impedance, giving you extra versatility as your system changes. Add one or two of these R5.12 subs and a quality amplifier in your journey, and you’ll feel the bass like never before.

Note: If you are wiring this DVC sub for lower impedance, make sure that your amp is compatible. Subwoofer Wiring Diagram

• Product Highlights:
• Oversaturated Motor Structure for Increased Magnetic Strength
• 12mm Vented T-Yoke & Top Plate Improve Low-Frequency Dynamics
• 317oz Double Stack Magnet, T-Yoke & Top Plate
• 2.5” 4-Layer Voice Coil w/ Large Gauge Wire Increases Power Handling
• High-Temperature Tolerance Adhesives Resist Thermal Failure
• Rubber Surround w/ UV & Chemical Protection
• Concave IMPP Primary Cone Increases Effective Surface Area
• Non-Transfer Spruce Pulp Cone w/ UV & Chemical Protection
• Acoustic Canceling Polyvinyl Chloride Gasket & Trim Ring
• Nickel-Plated 12ga Spring-Loaded Compression Wire Terminals
• Stitched Voice Coil Leads Prevent Potential Damage
• Dual Poly-Cotton Suspension Dampen Violent Accelerations
• Mounting Depth – 7.00″
• Optimum Sealed Enclosure – 1.00″
• Optimum Ported Enclosure – 2.00″

• Power Handling:
• Peak: 2000 watts
• RMS: 1000 watts
• Spruce Pulp Cone
• Rubber Surround
• High Temperature Copper Voice coil
• 15 mm Xmax
• 317 oz. Double Stacked Ferrite magnet motor structure
• Frequency Response: 20 - 400 Hz
• Resonance Frequency (Fs): 24.82 Hz
• Sensitivity: 85.6 dB
• Sealed box volume: 0.75 cubic feet - 1.25 cubic feet
• Ported box volume: 1.75 cubic feet - 2.25 cubic feet
• Top-mount depth: 7"
• Cutout diameter: 11-1/16"
