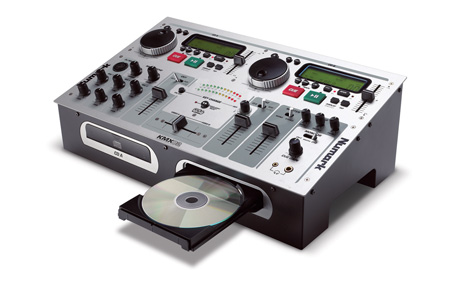

The only allinclusive system of its kind, the Numark KMX02 features dual CD+G drives with an integrated mixer. The KMX02 is the perfect allinone solution for DJs and clubs to add karaoke to their entertainment mix. Offering 3 microphone inputs with tone control, 2 switchcontrolled composite video outputs for graphics, echo capability and ÃÃñ 8% or ÃÃñ16% pitch control (via pitch bend/jog wheel), the KMX02 is ideal for mixing karaoke CD+G and regular audio CDs.



An important new feature on the KMX02 is a Key Change knob to adjust the musical key of a song (in half steps) without changing the speed, so a DJ can adjust a song's key to accommodate the vocal range of any karaoke performer. Rotating the knob to the left will result in a lower key (flat), while rotating to the right will result in a higher key (sharp).
Key change adjust for songs
Composite video outputs tied to a crossfader automatically select output source for seamless visual transitions on one video monitor
CD+G and CD audio support
Three microphone inputs with tone control capability (one with combo XLR & 1/4 inch; two with 1/4 inch in rear)
Echo effect control on the performer's mic inputs
EQ in master section
External inputs for two line level signals that are switchable with two phono signals
ÃÃñ 8%, ÃÃñ 16% pitch bend capability via pitch bend/jog wheel
True continuous playback and track sequence programmable
Fader start button for precise song starts
GENERAL
POWER: DC12V 3.0A
DIMENSION: 445 (W) x 258 (D) x156 (H)mm
WEIGHT: 5.4 Kgs
INPUT/OUTPUT IMPEDANCE & SENSITIVITY (MASTER 0dBV OUTPUT, LOAD=100KOHM, MAXIMUM GAIN, EQ FLAT)
AUX: 47K OHM /-14dBV (200mV) +/-2dB
PHONO: 47K OHM /-50dBV (3.16mV) +/-2dB MIC 3K OHM /-54dBV (2mV) +/-2dB
MASTER: :1K OHM MASTER XLR: 600 OHM /0dBm (815mV) +/- 2dB
PHONES: (load=32 ohm) 33 OHM /0dBV (1V) +/-3dB
FREQUENCY RESPONSE (EQ FLAT, MASTER UNBALANCED OUTPUT)
AUX: 20-20KHz +/- 2dB
PHONO: 20-20KHz +2/-3dB (RIAA)
MIC: 20-20KHz +2/-3dB
THD + N (MASTER 0dBV OUTPUT, MAXIMUM GAIN, w/ 20kHz LPF)
AUX: LESS THAN 0.05%
PHONO: LESS THAN 0.15% @ 1KHz (A-WEIGHTED)
MIC: LESS THAN 0.2% @ 1KHz (A-WEIGHTED)
NOTE: 0dBV=1V rms.
MAXIMUM OUTPUT (THD=10%, MAXIMUM GAIN, EQ FLAT)
MASTER: MORE THAN +16dBV (6.3V) at load=100K OHM
PHONES: MORE THAN +3dBV (1.4V) at LOAD=32 OHM 10
S/N RATIO (MAXIMUM GAIN, EQ FLAT, W/ 20KHz LPF, A-WEIGHTED)
AUX: MORE THAN 80dB
PHONO: MORE THAN 66dB
MIC: MORE THAN 60dB
EQ
HI: -12 +/- 2dB AT 13KHz
MID: -12 +/- 2dB AT 1KHz
LOW: -12 +/- 3dB AT 70Hz
CHANNEL AUDIO
CHANNEL BALANCE: Within 3dB
