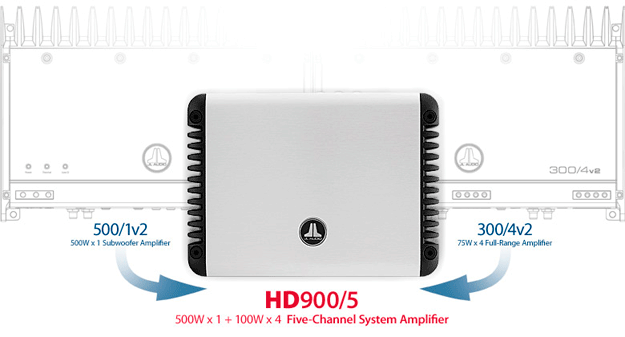

JL Audio HD900/5 Five-Channel 4 x 100 RMS + 1 x 500 RMS at 4 Ohm Class D System Amplifier
|
HD900/5
|
Retail Price: $1,099.99
Thunder AV Price: $799.95
You Save: $300.04 (27 %)
Call / Email for Availability
Detailed Description
Description: Five-Channel Class D System AmplifierPatented Technology: Single Cycle Control (U.S. Patent #6,084,450*)Differential-Balanced Input Topology: Three Stereo Pairs (Front, Rear and Sub)Front Crossover: Continously-variable (50 Hz - 500 Hz), selectable-slope (12 dB/octave Butterworth or 24 dB/octave Linkwitz-Riley) HP or LPRear Crossover: Continously-variable (50 Hz - 500 Hz), selectable-slope (12 dB/octave Butterworth or 24 dB/octave Linkwitz-Riley) HP or LPSubwoofer Crossover: Continously-variable (50 Hz - 500 Hz), selectable-slope (12 dB/octave Butterworth or 24 dB/octave Linkwitz-Riley) LPPreamp Output: 2-channel (pass through or tracking LP)Bass EQ: Variable boost up to +15dB and Remote Bass OptionInfrasonic Filter: Defeatable 24dB/octave at 30 HzLeft Minus Right / Right Minus Left Ambience Circuit: Ambient effect for rear channelsFront and rear speaker output connections: Accept up to 12 AWG wire+12V and Ground connections: Accept up to 4 AWG wireNotes: R.I.P.S. Regulated, Intelligent Power Supply, RealSink Heat-Management System,*Patented technology used under exclusive license for mobile audio from PowerPhysics, Inc. - Newport Beach, CARated Power Front Channels: 100W RMS x 2 @ 4? (11V - 14.5V) 75W RMS x 2 @ 1.5-3? (11V - 14.5V)Rated Power Rear Channels: 100W RMS x 2 @ 4? (11V - 14.5V) 75W RMS x 2 @ 1.5-3? (11V - 14.5V)Rated Power Subwoofer Channel: 500W RMS x 1 @ 1.5-4? (11V - 14.5V)THD at Rated Power: <0.03% @ 4? (front and rear ch.)<0.05% @ 5 ohm (subwoofer ch.)S/N Ratio (Front & Rear Channels): >108.5 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)S/N Ratio (Subwoofer Channel): >95 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)Frequency Response (Front and Rear Channels): 12 Hz - 28 kHz (+0, -1dB)Frequency Response (Subwoofer Channel): 12 Hz - 10 kHz (+0, -1dB)Damping Factor (Front and Rear Channels): >400 @ 4? per ch. / 50 Hz>200 @ 2? per ch. / 50 HzDamping Factor (Subwoofer Channel): >800 @ 4? / 50 Hz>400 @ 2? / 50 HzInput Range: Switchable from 200mV - 2V RMS (Low) to 800mV - 8V RMS (High)Dimensions (L x W x H): 10.74 in. x 8.29 in. x 1.93 in. 273 mm x 211 mm x 49 mm (Width Measurement Includes Plugs)
