• The LC-ALL Series systems are part of our Low-Current series of remote starters and are designed for vehicles with low-current ignition systems. Most late model vehicles have a low-current ignition switch. Typically these vehicles have small ignition switch wires with 1 ignition and 1 accessory or starter wire. This includes most all 2007 and newer GM, Chrysler, Ford and some import vehicles. One of the benefits that our LC-ALL series provides your low-current remote start system and data interface module all-in-one package making it a perfect remote start installation solution for any new vehicle with low-current ignition systems..
• In addition, other examples of using the LC series are Push to Start vehicles and new Chryslers that have no ignition wires at key cylinder. The LC Series is ideal as it can remote start these vehicles through data using a bypass module. Some of the features include, OEM remote integration with 3 press lock = Remote Start. 4 remote outputs to control left and right sliding doors, gas cap and trunk release without any extra wiring. The system can also be programmed as a 1-Way or 2-Way system by just changing the antenna and remotes. There are 26 options to customize the system to your needs.
• For vehicles that require more connections, the LC series remote starter has extra (-) inputs and (-) outputs to complete the installation. Older vehicles with larger ignition wires should use the regular Cool Start™ high current remote starters which have 14 gauge wires to power the high current ignition switches.

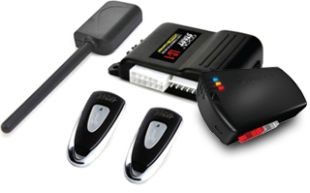

• Start your engine with the push of a button from up to 1500ft from your vehicle. The Cool Start™ LC-1.ALL system is a 1-Way remote start system combined with an EVO-ALL data interface module that uses (2) ultra-compact extended range 1-button transmitters to operate. Although there is no keyless entry feature on this system, the LC-1 has an unlock feature that allows the user to unlock the doors by pressing and releasing the start button once the engine is running. Other features include data ports, tachometer sensing and horn honk.
• The EVO-ALL data module will give you full data control over most features on the vehicle including transponder bypass, door locks, OEM security control and trunk pop. The EVO-ALL module also has vehicle-specific T-Harnesses available to make the installation on the vehicle a lot easier. These T-harness will eliminate a lot of the connections required from the EVO-ALL module to the car and make the wiring a lot cleaner under the dash. Please refer to the vehicle compatibility chart vehicle for a list of Low-Current vehicles and T-Harnesses. You can also visit the Support section of our website for more details. NOTE: Special packages are also available combining the LC-1.ALL with the vehicle specific T-harness.
• FEATURES:
• Designed for vehicles with low current ignition switches - late model vehicles like GM, Ford, Chrysler and some Japanese and other imported vehicles
• Benefits to installer - smaller gauge wires (18g) for easier connection to low current ignition switches
• Perfect for Push-to-Start vehicle and newer Chrysler vehicles with no ignition wires
• LC Series starters can remote start vehicle through the data module
• Includes a Smartphone port for direct Plug-In of a GPS Modem to interface with all the new Smart Phones
• Programmable runtime
• Remote start horn confirmation
• Engine monitoring
• Parking lights selectable output
• Compatible with automatic and manual transmissions
• Immobilizer bypass
• Diesel glow plug delay
• Vehicle engine and convenience CANBUS data
• Integrated Hybrid mode
• Remote start diagnostics
• Smartphone communication ready
• T-Harnesses available for Dodge/Chrysler/Jeep, GM and Ford vehicle. (See compatibility chart below)
• System: 1-Way
• Range: Up to 1500 Ft.
• 2-Way Data Port: Yes
• Smart Phone Port: Yes
• Remotes: (2) brushed aluminum 1-button remotes
• OEM Remote Compatible: Yes
• Security: No
• Keyless Entry: Unlock Only (Engine must be running)
• Driver's Priority Unlock: No
• Remote Start: Yes
• Manual Transmission Operation: Yes
• Dome light Supervision: Yes
• Horn Honk Output: Yes
• Starter Kill Output: No
• Trunk Pop Output: No
• Additional Auxiliary Outputs: 0
• Remote Panic: No
• Silent Lock & Unlock through remote: N/A
• Warranty: Limited Lifetime

LC1 LC4 Compatability
BUICK
Enclave 2008-2013
Encore 2013
LaCrosse 2010-2013
LaCrosse PTS 2010-2013
Lucerne 2006-2011
Regal 2011-2013
Verano 2013
CADILLAC
CTS 2008-2013
DTS 2006-2011
Escalade 2007-2013
SRX 2007-2010
CHEVROLET
Avalanche 2007-2013
Camaro 2010-2013
Cruze 2011-2014
Equinox 2007-2014
Express 2008-2013
Impala 2006-2014
Impala PTS 2014
Malibu 2013
Monte Carlo 2006-2007
Orlando 2012-2013
Silverado 2007-2013
Sonic 2012-2013
Spark 2013-2014
Suburban 2007-2013
Tahoe 2007-2013
Trax 2013-2014
CHRYSLER
200 2011-2013
300 - 300C 2005-2010
300 - 300C PTS 2011-2013
Aspen 2007-2009
Crossfire 2008
PT Cruiser 2006-2010
Sebring 2007-2010
Sebring Convertible 2008-2010
Town & Country 2008-2013
DODGE
Avenger 2008-2013
Caliber 2007-2012
Challenger 2008-2012
Charger 2006-2010
Charger PTS 2011-2013
Dakota 2007-2012
Durango 2007-2009
Grand Caravan 2008-2014
Journey 2009-2010
Journey PTS 2011-2013
Magnum 2005-2008
Nitro 2007-2011
RAM 2006-2012
RAM PTS 2013
FORD
Edge 2011-2013
Edge PTS 2011-2013
Escape 2013-2014
Explorer 2011-2014
Explorer PTS 2011-2014
F-150 2011-2013
F-250 2011-2013
Flex 2011-2013
Focus 2010-2013
Fusion 2010-2012
Mustang 2010-2013
Taurus 2010-2013
Taurus PTS 2013
GMC
Acadia 2007-2013
Sierra 2007-2013
Terrain 2010-2014
Yukon 2007-2013
HUMMER
H2 2008-2009

HYUNDAI
Equus PTS 2011-2013
Genesis Coupe PTS 2010-2013
Genesis Sedan PTS 2009-2013
Sonata PTS 2011-2013
Sonata PTS Hybrid 2011-2013
INFINITI
EX35 PTS 2008-2012
EX37 PTS 2012-2013
FX35 PTS 2009-2012
FX50 PTS 2009-2012
G25 PTS 2011-2012
G35 PTS 2007-2008
G37 PTS 2008-2013
M35H PTS 2012-2013
M37 PTS 2010-2013
M56 PTS 2010-2013
QX50 PTS 2014
QX56 PTS 2010-2013
JEEP
Commander 2006-2007
Compass 2007-2013
Grand Cherokee 2005-2013
Grand Cherokee PTS 2011-2014
Liberty 2008-2013
Patriot 2007-2013
Wrangler 2007-2013
KIA
Borrego PTS 2009-2011
Forte PTS 2011-2013
Magentis PTS 2009-2010
Sorento PTS 2010-2013
Soul PTS 2011-2013
LINCOLN
MKS PTS 2013
MKX PTS 2011-2013
LEXUS
CT200h PTS 2011-2013
ES 270 PTS 2009-2013
ES300h PTS 2013
ES 350 PTS 2007-2013
GS 350 PTS 2013
GS450h PTS 2013
GX 460 PTS 2010-2013
HS 250h PTS 2010-2011
LS 460 PTS 2007-2013
LS 600h PTS 2008-2013
LX 570 PTS 2008-2013
RX 350 PTS 2009-2013
RX 450h PTS 2009-2013
MITSUBISHI
Outlander PTS 2014
NISSAN
370Z PTS 2009-2013
Altima Hybrid PTS 2007-2011
Altima PTS 2009-2012
Cube PTS 2009-2012
GT-R PTS 2009-2012
Juke PTS 2011-2013
Maxima PTS 2009-2013
Murano PTS 2009-2013
Quest PTS 2011-2013
Sentra PTS 2013
OPEL
Astra J 2012
Insignia 2012
Mokka 2012
Zafira C 2012
PONTIAC
G8 2008-2009
Torrent 2007-2009
SATURN
Outlook 2007-2010
Vue 2008-2010
TOYOTA
4 Runner PTS 2010-2013
Avalon PTS 2013
Camry PTS 2007-2014
Camry PTS Hybrid 2007-2013
Corolla PTS 2009-2013
Highlander PTS 2008-2013
Highlander PTS Hybrid 2008-2013
Land Cruiser PTS 2008-2013
Prius PTS 2010-2013
Prius V PTS 2012-2013
Rav4 PTS 2009-2013
Sienna PTS 2011-2013
Venza PTS 2009-2013
VOLKSWAGEN
Routan 2009-2013
Touareg 2011-2013
Touareg PTS 2011-2013
FOR AN UPDATED VEHICLE LIST
PLEASE VISIT: http://ifar.ca/en/features/stand_alone_remote_starter.html
