Earthquake PA-600 2 x 300 Watts RMS @ 2 Ohms Pro Audio Stereo Amplifier
|
PA-600
|
Retail Price: $899.00
Thunder AV Price: $800.00
You Save: $99.00 (11 %)
Detailed Description
MADE IN THE USA!!!
Earthquake Sound's PA600 can be used in Stereo Mode as two separate power amplifiers, each capable of driving loads down to 2-Ohms. Each channel operates independently and has its own input connectors, sensitivity level controls, signal indicator LEDs, limiter circuitry, fault protection circuitry, power amp, and speaker output.

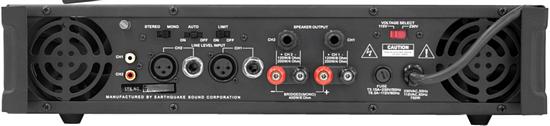

Input Connections: XLR, RCA and 1/4" phone (tip/ring/sleeve) - one per channel
Output Connections: Binding posts & phone jacks
Cooling: Variable speed forced air fan cooling rear/side intake, front exhaust
Mode Switches: Mono bridge mode selector & Limiter "ON/OFF" switch
Protection Circuitry: Short circuit, open circuit, RF burnout, over temp, speaker protection relays, turn on/off transient protection, DC protection and limiter circuitry
POWER OUTPUT
2 x 120 watts RMS @ 8 ohms 20Hz-20kHz (stereo mode)
2 x 200 watts RMS @ 4 ohms 20Hz-20kHz (stereo mode)
2 x 300 watts RMS @ 2 ohms 1kHz (stereo mode)
380 watts RMS @ 8 ohms 20Hz-20kHz (mono mode)
600 watts RMS @ 4 ohms 1kHz (mono mode)
FREQUENCY RESPONSE +0/-0.5dB, 20Hz-20kHz
TOTAL HARMONIC DISTORTION <0.05%, 20Hz-20kHz
SLEW RATE 40 volts / microsecond
SIGNAL TO NOISE RATIO > 89dB ref 200 watts /4 ohms (20kHz equivalent bandwidth)
LOAD IMPEDANCE
2 ohms or greater in stereo mode
4 ohms or greater in mono mode
DAMPING FACTOR Typical 300 (1kHz, 8 ohms)
CONTROLS Two Front panel level setting knobs, one power switch
INPUT CONNECTIONS XLR, RCA and 1/4" phone (tip/ring/sleeve), one each channel
OUTPUT CONNECTIONS Binding posts each channel, Phone jacks(one each channel)
MODE SWITCHES Mono Bridge mode select, Limiter "on"/"off"
PROTECTION CIRCUITRY Short circuit, open circuit, RF burnout, over temp, speaker protection relays,turn on/off transient protection, DC protection, limiter circuitry
COOLING Variable speed forced air fan cooling rear/side intake, front exhaust
POWER REQUIREMENTS
110 VAC 60Hz, 750VA
100-120 VAC 50/60Hz, 750VA
220-240 VAC 50/60Hz, 750VA
SIZE AND WEIGHT
19" W x 3.49" H x 15.43" D; 29 lbs.
482.6mm W x 88.8mm H x 392mm D; 13.2 Kg.
