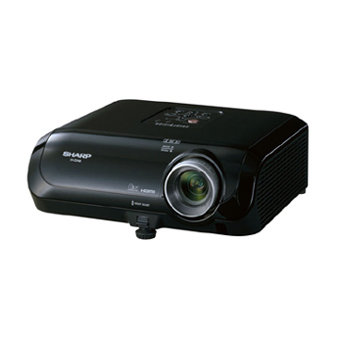

The SharpVision XV-Z3100 is a feature packed high definition DLP projector that is ideal for the dedicated home theater or any viewing room in the home. The XV-Z3100 utilizes DLP technology from Texas Instruments that includes BrillantColor technology and TrueVision Image processing that produces vibrant images and extraordinary video performance. The XV-Z3100 also features a resolution of 1280 x 720, a 6 segment 5x Speed color wheel, a brightness rating of 1000 ANSI lumens, and outstanding 6500:1 contrast ratio (thanks to a Twin Iris System), and three high definition capable inputs that include and HDMI interface, delivering one of the best pictures available in consumer home theater today.
Features
High Contrast Ratio 6500:1 (in High Contrast Mode)
enhances the XV-Z3100s ability to discern fine, detailed differences between the darkest and lightest colors and provides superior black level reproduction.
Twin Iris System enables a 6500:1 contrast ratio.
1000 ANSI Lumens (in High Brightness Mode) is a high ANSI lumens rating that delivers a bright, beautiful picture.
Native 1280 x 720 High Definition Capability compatible with 1080i and 720p HD signals.
Display Method: 0.62" DLPChip from Texas Instruments enables the XV-Z3100 to deliver superb picture quality.
Color Management System (CMS) provides individual user adjustments of six color characteristics (red, yellow, green, cyan, blue and magenta) for optimized colors.
Sealed Optics prevents dust, dirt and smoke from entering core parts of the optics. The system also needs no filter and less maintenance, resulting in longer use.
HDMI aids compatibility with the new generation of high definition set-top boxes.
TrueVision Image Processing for optimal video performance with unbelievable image clarity.
Home Theater Conveniences include easy installation and 29dB whisper quiet operation.
6 Segment, 5x Speed Color Wheel achieves flicker free, high-grade images with accurate color reproduction.
BrillantColor brings truer, more vibrant colors to video and image viewing. It utilizes a new color- processing algorithm and system level enhancements to enable high picture brightness while providing truer, more vibrant colors.
Specifications
HDTV Compatible Yes (1080i/1035i/720p)
Aspect Ratio 4:3/16:9
Resolution 1280 x 720 (Total: 921,600 pixels)
Brightness 1000 ANSI Lumens (in High Brightness Mode)
Contrast Ratio 6500:1 (in High Brightness Mode)
Maximum Screen Size 300" (Diagonally measured using 16:9 aspect ratio)
Projection Distance 100" (16:9 widescreen) Throw Distance 9 11" 11' 6"
Display Method 0.62" DLP Chip
Inputs Component (Y, Pb, Pr) x 2
RGB/Component (HD-15 pin) x 1
Composite Video (RCA) x 1
HDMI x 1
S-Video (4-pin DIN) x 1
RS-232C Serial Port (9-pin D-sub) x 1
Outputs 1 DC 12V Trigger out
Anamorphic DVD Capable Yes
Computer Compatible XGA, SVGA, VGA, MAC 19"/16"/13"
Video System NTSC/NTSC 3.58, 4.43/PAL (60Hz)/PAL-M/ PAL-N/SECAM
Lens Type 1-1.15x Manual Zoom and Focus
Projection Lamp Type/Life 220W SHP/up to 3,000 hours
I/P Conversion and 3-2 Pull Down Yes
Gamma Correction Yes
Geometric Adjustment/Digital Keystone Correction
Yes
Color Temperature Adjustment Yes
Color Management System (CMS) Yes
Advanced Picture Mode Yes
Quick Start Feature Yes
Picture Freeze Yes
TrueVision Image Processing Yes
BrillantColor Technology Yes
Detachable AC Cord Yes
Optional Ceiling Bracket AN-XRCM30
Wireless Glow Remote Control Yes
Optional Digital Decoder Required Yes, for HDTV
Built-in Audio None
Power Source 100-240V AC, 50/60Hz (Multi-Voltage)
Power Consumption 303W (4W Standby)
Dimensions (w x h x d) 12-13/32" x 4-19/64" x 11-1/32" (Main Body Only)
12-13/32" x 4-47/64" x 11-37/16" (including Terminal Cover)
