Description

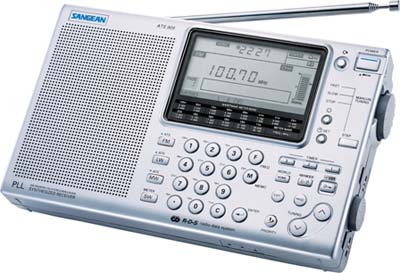

The ATS-909 is the flagship of the Sangean line. It packs features and performance into a very compact and stylish package. Coverage includes all long wave, medium wave, short wave, AM and FM stereo frequencies. (FM Stereo through headphone jack).

Short wave performance is enhanced with a wide-narrow bandwidth switch and excellent single side band performance (SSB tuning to 40 Hz steps via fine tuning). Five tuning methods are featured: direct keypad entry, manual tuning, auto scan, manual up-down tuning, memory recall or manual knob tuning.

The alpha-numeric memory system lets you store 306 presets (260 short wave, 18 AM, 18 FM and 9 long wave plus priority). 3 Programmable wake timers available. Clock displays even when the radio is tuning and has 42 world city times stored. The large LCD display also features a signal strength and battery life indicator. The ATS-909 will also display RDS on PL, PS and CT for station name and clock time in areas where this service is available. Includes. ANT-60 shortwave antenna, carrying pouch, ear-buds, and ADPATS-808 6V DC Adapter.

Features
PLL Synthesized Digital Tuning
Backlit LCD Display
307 Programmable Memories
Frequency
FM 87.5-108
AM 520-1710
SW 1.711-29.999
LW 153-519
Five Tuning methods:
Direct frequency tuning
Auto scan
Manual tuning
Memory recall
Rotary tuning
Auto Tuning System (ATS)
Pre-programmed station name and frequency according to customers requirement before ex-factory
Radio Data System (RDS)
Alarm Function w/Human Waking System (HWS)
AM Wide/Narrow
Stereo/Mono Selector Switch
8 Characters for editing station name in display
EE PROM for memories back up
Stereo Headphone Jack
Single Side Band (SSB)
Fine Tuning Control
RF Gain Control
Built-in 42 world cities time plus DST device
Direct key to recall favorite station in one button
Adjustable Sleep Timer
Signal & Battery Strength Indicator
Tone control (Music/Normal/News)
Dual Conversion
REC out and standby control output
3 Timers
