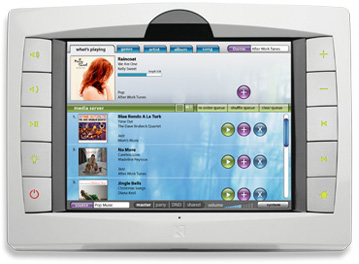

The TSV-E5 touchscreen is a beautiful wall-mounted interface for the ACA-E5 multiroom controller amplifier. It features a high-resolution 8.4 backlit color touchscreen for quickly navigating menus, settings and source features and receiving system feedback. You can easily access, control and enjoy your music and video sources from anywhere in the home.

This wall-mounted touchscreen offers advanced features, such as a wake-to-music alarm and sleep timer, remote zone control, full control of a Russound SMS-3 Smart Media Server, including theme and data editing and IP based CCTV camera support. For ease of installation, the TSV-E5 connects with just one CAT-5E cable.

The TSV-E5 is designed to control an ACA-E5 Russound RNET® audio distribution system. It controls the newest Russound components, including the SMS3 Smart Media Server, iBridge Dock and Bay, and the ST2 Tuner with AM/FM.

The full-color, high-resolution screen displays valuable information such as Playlist, Channel, Station, Artist, Song Title, Genre and more, all in real time. It also displays album cover art and digital image slide shows from Russound SMS-3 Smart Media Servers, enriching the user experience.

8.4 Color TFT display with backlight, 800 x 600 dpi resolution
Controls
Rectangular touchscreen interface
Ten backlit hard buttons
CAT-5 connection RJ45 (T568A standard)

10 hard buttons for frequently used tasks
Remote zone control
IR receiver with optional plasma resistant IR filter
IP CCTV camera support
Software controlled ambient light sensor for backlight brightness adjustment
Display RSS distributed web content
Alarm with sleep timer
Single CAT-5 connection
Full SMS-3 control, including theme and data editing
