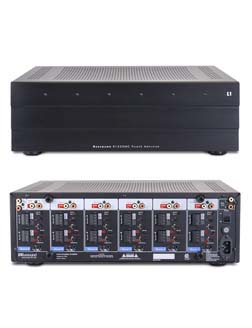

Russound R1250MC 12 X 50 Watts @ 8 Ohms Multi Zone Amplifier
|
R1250MC
|
Retail Price: $1,899.00
Thunder AV Price: Call / Email for Price
Detailed Description
Description
The Russound R1250MC is a 12-channel power amplifier ideal for use as the main amplifier in home theater and distributed audio systems. The 12 channels are arranged in pairs to provide amplification for six stereo zones.
The R1250MC provides an array of useful features such as autosensing line inputs, bridged mono operation, independent zone triggering, bus inputs and multiple speaker outputs per zone to meet a wide variety of applications and configurations
The R1250MC is rated at 50 watts per channel into 8 ohms and 80 watts per channel into 4 ohms. With a zones mode switch set in the Bridge Mono position, both channels in the zone are combined for a mono output of 140 watts into an 8-ohm load. All this power is supplied by three high-output toroidal transformers. Each amplifier output channel incorporates robust protection circuitry for safety and reliability under extreme circumstances.
Features
Wide application use ideal for home theater and 6-zone distributed audio systems
Bridgeable zones to create flexible power configurations
Reliable and robust circuitry designed for stability under demanding loads
Flexible installation with either attached feet or included rack ears
Space-saving design 3U enclosure saves rack or cabinet space
Autosensing line inputs activate amplifier zones upon detecting audio signals
Specifications
Single Zone Maximum Output Power: (0.1% THD+N; f=1 kHz) 50W per channel, 2 channels at 8 ohms 80W per channel, 2 channels at 4 ohms 140W at 8 ohms, 2 channels bridged
All Zones Continuous Output Power: 35W per channel, 12 channels at 8 ohms 50W per channel, 12 channels at 4 ohms 100W at 8 ohms, each zone bridged
Distortion: <0.05% THD+N from 20Hz to 20kHz
Signal-to-Noise Ratio: >100dB
Frequency Response; 20Hz to 20KHz +/- 0.3dB
Input Sensitivity: 70mV for 1W at 8 ohms 500mV for 50W at 8 ohms
Line Input Impedance: 47 kilohms
Voltage Gain: 32dB
Delay Time: 0.5 to 4.5 minutes
Input Trigger: 12VDC 10 kilohms
Output Trigger: 12VDC 100 mA
Power Requirements: North America: 120VAC 60Hz 7A Fuse Rating: T15AL 250V Europe: 230VAC 50Hz 4A Fuse Rating: T10AL 250V
Dimensions: 17" W x 16.5"D x 5.875"H (43 x 42 x 15 cm)
Rack space:3U
Weight: 48.9 lbs. (22.2 kg)
