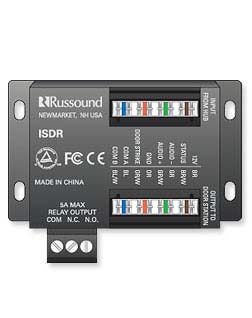

Description
The optional door strike release can be installed to send a unlocking message to the homes entrance. The module works with most third-party electric door strike releases (not available from Russound).
Features
Compatible works with most third-party door strike releases (optional) for simplified installation
Convenient activates door strike release, allowing user to provide visitor access to the residence from any keypad
Installer friendly removable connector for simple termination, and mounts easily
Cost-efficient low-cost solution for home communication, security and convenience
Universal can be used in any situation where a door strike release is necessary
CAT-5 connectors: (2) 110 punch-down blocks
Strike release relay: 1-pole double-throw (NC/NO)
Relay contact rating: 5 A @ 12 VDC
Relay wire size: Up to 14 AWG (1.63mm)
Relay connector: Removable 3-pole screw terminal
Mounting method: Surface
Dimensions: 3" W x 1.875 H x 1" D(7.6 x 4.8 x 2.5 cm)
Weight: 4.8 oz (136g)
