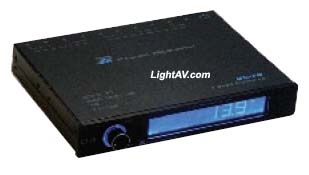

DIGI-Q (DIGITAL-EQ) DOES MORE THAN JUST ALTER YOUR MUSIC. IT GIVES YOU 7 BANDS OF EQUALIZATION,
SUBWOOFER CROSSOVER AND LEVEL CONTROLS AS WELL AS AN EXTRA AUDIO INPUT FOR A SECONDARY SOURCE. YOU CAN CONTROL ALL THIS FROM THE DIGI-Q WITH ONLY ONE KNOB. A FEW CLICKS AND TURNS OF THE KNOB AND YOU CAN SCROLL THROUGH ALL THE EQ SETTINGS, LEVEL CONTROLS, SYSTEM
VOLTAGE METER AND EVEN A TRUE FREQUENCY COUNTER FOR THE OUTPUTS. IMAGINE THE INNOVATION
INVOLVED IN THIS ONE LITTLE HALF DIN UNIT. EXTEND YOUR FUNCTION?GET DIGI-Q.

Output Voltage Up to 8 V
Subwoofer Output Voltage Up to 10 V
Frequency Response 15HZ - 30KHZ
THD+n (1vrms output) = 0.002%
Input sensitivity = 0.3 - 1.5 Vrms
Channel separation (L ? R) = 79db
Source voltage range = 9.5 - 14.2
Current consumption 2amps (all outputs @ max.)
B/C control range = 20 db (+10 to -10db)
Subwoofer output freq. range 180-550 (LP)
Frequency bands: #1-57HZ, #2-134HZ, #3-400HZ, #4-1KHZ,#5-2.2 KHZ, #6-6.3KHZ and #7-16KHZ
