FEATURES

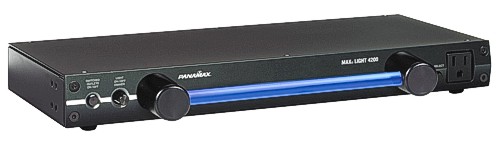

The Coolest Light in the Rack!
The MAX Light provides clean, cool, glare-free and directional LED lighting for up to 3 feet of rack space. The LED light rod is virtually unbreakable and is designed to replace troublesome and expensive rack lights.
Protect or Disconnect Circuitry
Protects equipment no matter how big the surge or, in the event of a catastrophic surge, completely disconnects the power.
WARRANTIES
$5,000,000 Connected Equipment Protection Policy
Panamax will protect your equipment or we will repair or replace up to $5,000,000!
3 Year Product Warranty
The surge protector shall be free of any defects in design, materials, or workmanship, and Panamax will repair or replace any defective product up to three years from the purchase date.

AC SPECIFICATIONS
Protect or Disconnect Circuitry Yes
Thermal Fusing Yes
Catastrophic Surge Circuit Yes
Single Pulse Energy Dissipation 1350 Joules
Spike Capacity 52,000A
EMI/RFI Noise Filtration 50dB (99.7%)
Line Voltage 120VAC, 50/60 Hz
Clamping Level (TVSS Voltage) 330V
Initial Clamping Level 141V RMS/200V Peak
Overvoltage Shutoff N/A
Undervoltage Shutoff N/A
Protection Modes L-N, N-G, L-G
Maximum Current Rating 15A (1800W)
Response Time <1ns

PRODUCT FEATURES
Number of Outlets 9
Always On Outlets 0
Switched Outlets 9
Delayed Outlets 0
Cord Length 9 ft.
Connections Right Angle
Length 6.50"
Width 16.86"
Height 1.75"
Weight 10.00 lbs.

TELCO SPECIFICATIONS
SignalPerfect Circuitry
Fuseless / Auto Resettable No
Clamping Level
Capacitance
Suppression Modes
Wires Protected
Connectors
