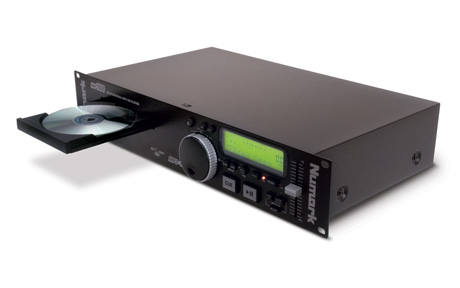

Designed for a variety of applications, the MP102 CD player is a rackmountable solution to a wide variety of music playback requirements. Numarks MP102 plays standard audio CDs and MP3 CDs, provides buffered Anti-Shock memory protection, delivers seamless looping for both CD audio and MP3 files, pitch control with a pitch bend wheel, stereo RCA and digital outputs, and balanced outputs. The unit features a large, backlit LCD, provides ± 8/16% pitch bend capability via its pitch bend/jog wheel, supports true continuous playback, is track sequence programmable, and supports both folders and ID3 tags for easy identification of materials.

As a rackmountable unit, Numarks MP102 is ideal for anyone in search of an easy-to-transport, affordable disc player that supports both CD audio and MP3 files. With digital output capability as well as both line level and balanced audio outputs, the MP102 facilitates easy integration into a variety of playback environments.
Ability to play both standard audio CDs as well as MP3 discs
Buffered Anti-Shock memory protection for consistent music playback
Ability to create seamless loops both CDs and MP3 discs
Buffered instant start and stutter start with settable stutter points
Easy-to-read, backlit LCD that includes text display for identifying song names and other information
± 8/16% pitch bend capability via the pitch bend / jog wheel
Supports true continuous playback and is track sequence programmable
Balanced and unbalanced outputs, digital ouput (SPDIF)
Dimensions: 482w x 88.8h x 262d (mm)
Weight: 4Kg
Power source: AC 115/230v, 50/60Hz, 15 watts

Audio Characteristics


Output level 2VRMS +/-0.5dB [Typical]; 2VRMS +/-1dB [Limit]; 1KHz, 0dB [Condition]
Channel Balance Within 0.2dB [Typical]; Within 1dB [Limit]; 1KHz, 0dB [Condition]
Frequency Response 20-20KHz +/-0.4dB [Typical]; 20-20KHz +/-1dB [Limit]; 0dB output [Condition]
THD .0053% [Typical]; .01% [Limit]; 1KHz, 0dB [Condition]
S/N ratio 120dB [Typical]; 90dB [Limit]; 1KHz, 0dB [Condition]

Media Format

Applicable file extensions: .mp3, .MP3, .mP3, .Mp3
Level 1(max. 8/8.3 character style) ISO9660 Level 2(max. 31/30 character style)
Joliet max. 64/64 character style
CD-ROM sector format mode-1 only
Max. number of Folders 255
Max. number of files max. 999 files (see note #1)
MPEG 1 Layer 3 standard (ISO/IEC11172-3), which provides for single channel (mono) and two-channel (stereo) coding at sampling rates of 32, 44.1 and 48kHz
MPEG 2 Layer 3 standard (ISO/IEC 13818-3), which provides for similar coding at sampling rates of 16, 22.05, 24 kHz
MPEG 2.5 Layer 3 standard, which provides for similar coding at sampling rates of 8, 11.025 and 12 kHz
Disc at Once and Track at Once
Disc Writing Method Multi Session
If the 1st session is CDDA, you can playback Only CDDA track, If the 1st session is MP3, you can playback only MP3 file
Note #1: max. 255 files each folder
