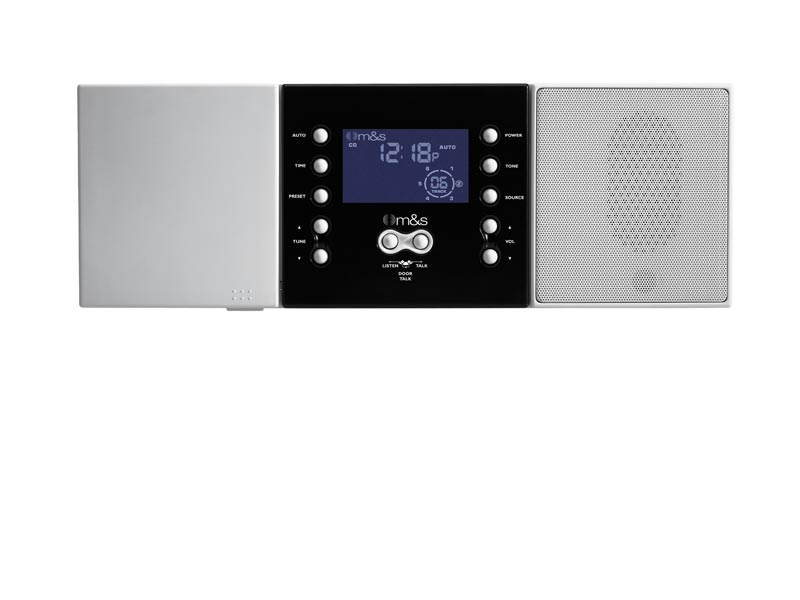

The Model dmc1 Music/Communication System Master (White) is a full-function intercom and music distribution system designed for residential use. The system supports up to 15 room stations and up to three door speakers. The built-in AM/FM radio tuner allows setting eight AM station presets and eight FM station presets. The backlit liquid crystal display shows the operation mode, audio source, radio frequency, volume setting, and time. With the optional Model dmc1CD Add-on 6-disc CD changer installed, the display shows the disc number selected and the track number currently playing.

Room stations have pushbuttons that control the system operation. Room and patio stations connect to the master unit using standard Cat-5 cable. The dmc1 and its accessories can also be used to retrofit existing 6-wire intercom system installations. All room station models can select talk or listen to other room stations, door speakers and the master unit. Each has an intercom volume control. Pressing the privacy button on a room station prevents that room from being monitored. The Model dmc1RS room stations and dmc1RW patio stations can select the audio source, control the radio tuner, and set the master music volume.

With the addition of the optional Model MC960PA Remote Power Amplifier, stereo music can be distributed from the master unit through up to 30 pairs of in-ceiling or in-wall speakers. For access control, the optional Model DRW Door Release Mechanism can be installed and activated from the master unit or room stations. The optional three-note Model MC3 or eight-note Model MC8 chime modules provide a selection of door chime sounds.

For master unit rough in and finish-out components, order the Model dmc1H Wall Housing Kit to mount the dmc1 master. If the optional Model dmc1CD Add-on CD Changer is used, order the Model dmc1F Combination Mounting Frame and the dmc1HC CD Combination Wall Housing Kit.

Features
White faceplate color
Supports up to 15 room stations
Supports up to 3 door speakers
Cat-5 wiring to room and patio stations
For new installations or 6-wire intercom system retrofit installations
30 Watts (RMS) maximum output power
Two music source inputs
Eight AM and eight FM radio station tuner presets
Stereo upgrade with optional power amplifier
Remote volume and source control from room stations
Privacy, intercom only, and door release features
Programmable monitor override
Automatic on/off feature
Optional three-note and eight-note door chime

15 1/4" W x 5 5/16" H
