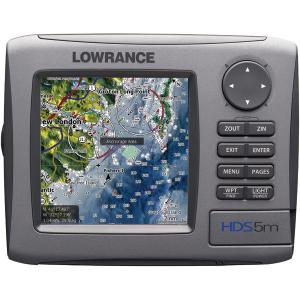

LOWRANCE HDS5M NAUTIC INSIGHT 5" SolarMax LCD 16 Channel GPS+WAAS CHARTPLOTTER 000-0140-23

Lowrance GPS

000-0140-23

Email this page to a friend

LOWRANCE HDS5M NAUTIC INSIGHT 5" SolarMax LCD 16 Channel GPS+WAAS CHARTPLOTTER 000-0140-23

000-0140-23

Thunder AV Price: $699.00

Quantity:

Add to a new shopping list

Detailed Description

To precisely find your way, a new high-sensitivity 16-channel GPS+WAAS (GPS+EGNOS+MSAS for non-Americas) antenna is built-in.

The amazing new Nautic Insight cartography, with life-like views of underwater topography, is also built in to enhance boating for Americas market - non-Americas will have the Navionics World Background map preloaded. Plus, this HDS is now fully compatible with all Navionics chartcards Platinum+, Platinum, Platinum HotMaps with one high-speed SD card slots.

Navionics support now available as a software update.

More Details:

HDS Revolution (introduction)

What is HDS? (in-depth details)

Video Library (video tutorials)

DISPLAY

Display Size 5 in \ 127 mm

Display Resolution 480 x 480 (H x W)

Display Type 256-color SolarMAX PLUS TFT

Backlighting Screen/Keypad

Backlighting Type Flourescent (CCFL) backlit screen, LED keypad backlight

Resize Display Window Yes

Sonar And GPS Overlay Data Yes

Split Screen Presentation Yes

Multilanguage Display Yes

Languages Supported 23

GPS / NAVIGATION

GPS Antenna Type Internal, high-sensitivity GPS+WAAS (Americas) or GPS+EGNOS+MSAS (non-Americas)

GPS Receiver Channels 16 channels

Background Map Expanded U.S. BaseMap or Lake Insight or Nautic Insight (Americas) or Worldwide background map (non-Americas)

Custom Mapping Optional Navionics Platinum+ and Platinum chartcards with TurboView for worldwide coverage - as well as Navionics HotMaps Platinum, Lowrance Hot Spots PRO and LakeMaster ProMaps (Americas)

Waypoint Storage 5000

Routes 200

Plot Trails Up to 10 trails - up to 12,000 points/trail

Man Overboard Feature Yes

GPS Alarms Yes

RADAR

Antenna Type Optional Lowrance radar choices available

NETWORKING / CONNECTORS

NMEA 0183 Input Yes

NMEA 0183 Interface up to 38,400 baud

NMEA 2000 Pending Certification Yes

NMEA Output 0183/2000

Connectors NMEA 2000, NMEA 0183 and Ethernet

TECHNICAL / ENVIRONMENTAL

Built-in Backup Memory Yes

Casing Sealed and waterproof

Waterproof Standard IPX6 and IPX7 with memory card door closed

Width 7.2 in \ 184 mm

Height 5.7 in \ 146 mm

Depth 4 in \ 102 mm

POWER

Power Supply 10 - 18 vDC

Power Supply: Input Current 0.7A at 13VDC with backlight on, 0.4A with backlight off

OTHER

List of Specified Standards

EMC: IC RSS-310; FCC Part 15 Class B; IEC60945

Memory Card Capable One SD/MMC/MMC+ memory card slot

Operating Temperature Stored -15C to 55C (5F to 130F)

Other Features

Fishfinder features available via Ethernet networking, optional SIRIUS Satellite Weather/Radio and new 2-year limited warranty
