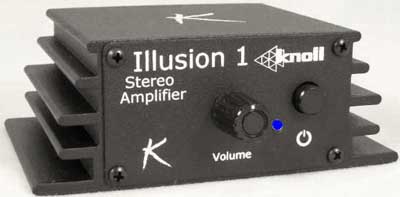

The Illusion 1 stereo amplifier could not be more aptly named. It packs an amazing amount of sound in a tiny footprint. Ingenious in design, its case is one big heat sink so it runs cool. Designed for multipurpose use wherever big sound is needed it can be used with computer sound cards, extra rooms of distributed audio, MP3 players and anywhere quality sound is required. Rated at 15 watts RMS per channel this high-fidelity wonder gives the illusion a much bigger amplifier is being used. Volume can be adjusted up and down and a power switch is provided. The Illusion 1 is designed to meet the amplifier needs of custom installed systems where high-quality sound is a specific requirement.

Key Features:
* Versatile amp, includes volume and power switch.
* Amplifier has 15 watts RMS per channel rating.
* Each channel is protected from overheating, overloading, overvoltage and undervoltage. The protection circuitry automatically restores the amplifier channel as soon as its parameter returns to the safe operating area.
* Small form factor fits almost anywhere.
* 2-8 ohms stable. Goes with almost any speaker.

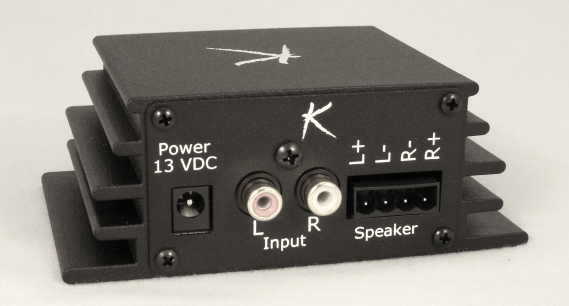

* Gold RCA inputs, detachable jack outputs.
* Shipped with PS1318 power supply.

Specifications:
Inputs Gold RCA jacks with adjustable gain
Input impedance 55k ohms
Outputs Detachable 4 position connector
Output power 15 watts RMS per channel (8 ohms)
Peak output power 20 watts per channel (8 ohms)
Ideal impedance 4 - 8 ohms
Frequency response 10 Hz - 40 kHz +/- 1dB (1w)
THD distortion Less than 1% 20 Hz to 20 kHz
IMD distortion Less than 0.5% 60 Hz 7 kHz 4:1 (SMPTE)
Dimensions 4-1/2" x 1-3/4" x 4" d (114 x 45 x 100 mm)
Power 13VDC at 1800mA
