Now Shipping!

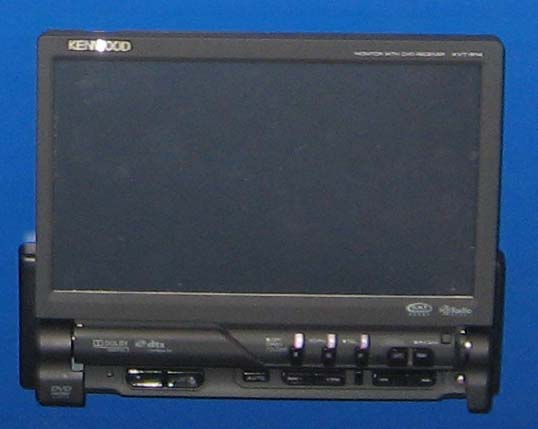

The KVT-514 offers innovative and convenient entertainment features like USB Direct Control for iPhone/iPod or USB thumb drives. The 7.0" touchscreen is easy to read and with Variable Color Illumination, you can even match the deck's illumination colour to your vehicle's dashboard lighting.

General Features
1-DIN 7.0 QVGA TFT Active Matrix Display With Z-Action Mechanism
24-Bit Digital-To-Analog Converter
DVD-Video Playback
iPhone/iPod Audio Video USB Direct Control
Variable Color Illumination
Selectable Wallpapers & Customizable Backgrounds
Navigation Ready (Requires KNA-G510)
Bluetooth Ready (Requires KCA-BT200)
SAT Ready (Requires CA-SR20V + Sirius SC-C1 Tuner or KCA-XM100V + XM Mini Tuner)
HD Radio Ready
Dual 2.0 Volt Pre-outs
1 x USB Input, 1 x AV Input, 1 x Rear Camera Input, 1 x AV Output
Firmware upgradeable (go to www.kenwood.com/cs/ce for latest firmware versions)
1-Year Warranty

iPhone/iPod Audio Video USB Direct Control
Kenwood Multimedia receivers connect seamlessly with most iPods and the new iPhone 3G featuring audio video playback via a KCA-iP301V iPod Audio Video USB Direct Cable.

Features include:
Supports Album Art
Supports Audio & Video Content Including Content Purchased From iTunes With DRM
Supports Up To 12Mbps transfer speeds
Powers and Charges Compatible iPhone/iPods
Compatible models include:
iPhone 3G
Touch
iPod Classic
iPod Video (5th/6th Gen)
iPod Nano (1st/2nd/3rd Gen)
Must update iPhone/iPod using iTunes for the latest Apple firmware

Built-In Sirius Satellite Protocol
Kenwood Multimedia products offer more value by including a Sirius SSP interface. By simply adding a Kenwood CA-SR20V adapter cable, you can connect a Sirius SC-C1C tuner or a SC-VDOC1 car dock cradle for your portable Sirius tuner
Z-Action Mechanism
This exclusive mechanism allows the display to automatically slide out, rise to your ideal viewing angle (8 presets) and then retract horizontally to your chosen viewing distance (4 presets) all in a distinctive Z-shaped motion. The unique Z-Action mechanism allows installation in a wider range of vehicles and as it uses a belt-drive system it increases reliability substantially from similar products using gear driven monitor designs.
Specifications
AV IN 1 sets
AV OUT 1 sets
Bluetooth Hands-Free Ready KCA-BT200 Required
Maximum Output Power 50W 4
Multi-task Browser Yes
Navigation Ready Yes
Picture Size 7.0" Wide
Preout Level / Impedance 2V @ 600?
Rear Camera Input 1
USB Direct Control 12Mbps Max Speed
Wallpaper Customize Yes
# Of Pre-amplifier Outputs Rear/Sub Switchable
2-Zone Yes
Decoder AAC, WMA, MP3, WAV
Digital-To-Analog Converter 24-Bit
Display Motorization Z-Action
Equalizer 3-Band Parametric
File System FAT 16/32
Frequency Response 20Hz - 44kHz
Graphic User Interface On-Screen Display
HD Radio Ready Yes
High-Pass & Low-Pass Crossovers Yes
Inputs 1 x RCA & High-Level
Maximum Power Supply Current 500mA
Number of Pixels 336,960
Wireless Remote No
Reverse Camera Ready Optional CCD-2000
Security Code Function
Signal-to-Noise Ratio 98dB
Steering Wheel Remote Control Input Requires Compatible 3rd-Party Accessory
Subwoofer Control Yes
Total Harmonic Distortion .01%
User Interface Touchscreen Control
WARRANTY 1 - Year Parts & Labor
iPhone/iPod Video Interface Optional KCA-iP301V
