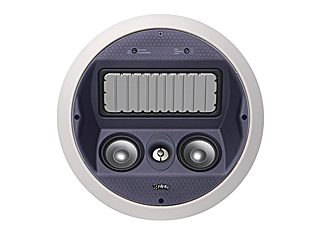

With technologies derived directly from the acclaimed Infinity Cascade™Series, the ERS 610 features a patent-pending MRS™ flat-panel mid-bass driver, dual CMMD® midrange drivers and a CMMD-dome tweeter with an integral waveguide, all mounted in a unique baffle that is optimized for home theater performance and superior off-axis response,so everyone enjoys the show.

The result? Distortion-free sonic accuracy at high listening levels,for every ounce of excitement your movies and music have to offer.

PRODUCT SPECIFICATIONS
General
Frequency Response 80Hz - 20kHz (±3dB)
Recommended Amplifier Power Range 10 - 205 watts
Sensitivity (2.83V @ 1m) 85dB
Nominal Impedance 8 ohms
Crossover Frequency 700Hz; 2,000Hz; 24dB/octave
Low-Frequency Driver 7-3/4" x 3-3/8" (197mm x 85mm) CMMD™, MRS™
Midrange Driver Dual 3" (75mm) CMMD™
High-Frequency Driver 1" (25mm) CMMD™
Dimensions External Diameter: 12-3/4" (323mm)
Mounting Depth 5-5/8" (142mm)
Cutout Diameter 11-3/8" (289mm)
Weight 8 lb (3.6kg)
Optional Accessories
Rough-In Frame: IW10R RIF
