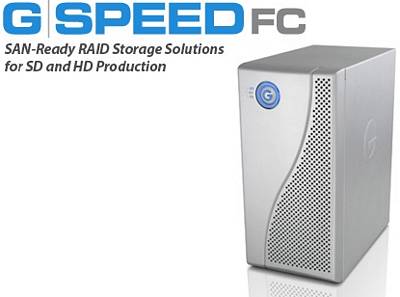

Hitachi GSPDFC359TB G SPEED FC 9000 GB HDD SAN-Ready RAID multi-stream, multi-user SD and uncompressed Media Storage for SD / HD Production

Hitachi

GSPDFC359TB

Hitachi GSPDFC359TB G SPEED FC 9000 GB HDD SAN-Ready RAID multi-stream, multi-user SD and uncompressed Media Storage for SD / HD Production

GSPDFC359TB

Thunder AV Price: $5,623.20

Quantity:

Add to a new shopping list

Detailed Description

High-Performance SAN-Ready RAID Storage Solutions for SD and HD Prodution

G-SPEED FC is the ideal storage solution for multi-stream, multi-user SD and uncompressed HD work flows. G-SPEED FC features 4Gbit Fibre Channel connectivity and is available in a compact desktop enclosure with 6 Hitachi SATAII drives. G-SPEED FC and can be configured (via a front panel LCD or Web GUI) as a JBOD or in RAID levels 0, 1, 3, 5 or 6.

This flexibility enables the system to be tuned to the required level of performance and fault-tolerance necessary to fully support your application.

G-SPEED FC is "SAN ready" and is an affordable and simple way to deploy a fail-safe SAN or add additional high performance RAID storage to existing SAN networks. G-SPEED FC's built-in Web GUI monitors the status of the system including power supply voltage, fan RPM and the temperature of the RAID controller & hard drives. In the event of a problem, G-SPEED FC can send an email message to up to four recipients.

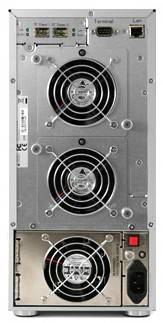

FC Connectors

FC Connection Ports

G-SPEED FC supports the latest and greatest professional video editing equipment from AJA, Avid and Blackmagic Design. G-SPEED FC is compatible with SAN software including Xsan, metaSAN and StorNext.

High-speed, low-cost RAID designed specifically for professional content creation applications

Supports multi-stream ProRes 422 and uncompressed SD/HD workflows

High-performance 4Gbit Fibre Channel interface SAN Ready!

RAID controller w/256MB cache supports RAID levels 0, 1, 3, 5, 6 & JBOD

6-drive desktop enclosure with hot-swappable Hitachi 7200 RPM, 3.5" 3Gbit SATA drives each with up to 32MB cache

Storage capacities up to 6TB per unit

Web-based configuration and management

Auto-rebuild and email notification

Removable cooling fan ensures reliable operation and data integrity

Optional redundant power supply

Ships complete with SFP to LC module and 2-meter optical cable

Mac OS X and Windows compatible

Standard 3-year factory warranty

G-SPEED FC desktop Fibre Channel RAIDs provide serious performance in both shared and direct attaced post production environments. The 6-drive G-SPEED FC provides over 300MB/second when connected to a 4 Gbit Fibre Channel host bus adapter!

Specifications:

Kit Contents:

G-SPEED FC System

(6) Removable Disk Modules

Power Cord

(2) 3m LC to LC Optical Cable

RS232 Cable

SFP

CD Manual

RAID Architecture: Intel 80219 400Mhz CPU

RAID Features: RAID levels 0, 1, 3, 5, 0+1, 6, & JBOD

System Type: 6-Drive Tower

Host Interface: Dual 4Gb FC channels

Disk Interface: 6 SATA-II channels

RAID Management: Firmware embedded Web browser-based RAID manager via built-in 10/100 ethernet port

Firmware embedded manger via RS-232 port

Firmware embedded manager through LCD control panel Field-upgradeable firmware from flash ROM

Monitoring Indicators: All system status can be monitored via firmware-embedded Web browser-based RAID manager

system status indication through LCD, LED and alarm buzzer

All system events can be sent to multiple user alerts via emails firmware embedded SNMP agent allows remote to monitor events through LAN with no SNMP agent required Operating System: OS independent and transparent

Power Supply: Single 300W ATX Power Supply / Optional Redundant

Dual 250W Power Modules with PFC Feature

Electrical: AC Voltage 110-230 VAC/AC frequency 50-60Hz

Temperature: Operating Temperature : 10 to 35 degree C.

Non Operating Temperature : -40 to 60 degree C.

Relative Humidity: 20% ~ 80% non-condensing

Dimensions: 166mm(W)*288mm(D)*346mm(H)
