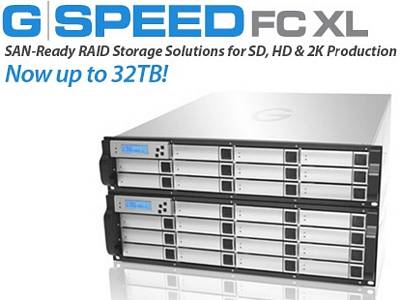

Hitachi GSP163512TB G SPEED XL 12TB Dual-Channel 4Gbit Fibre Channel HDD, SAN-Ready RAID Media Storage for SD / HD / 2K Production (16 Drive 3U)
|
GSP163512TB
|
Retail Price: $12,999.00
Thunder AV Price: $11,372.98
You Save: $1,626.02 (13 %)
Detailed Description
G-SPEED FC XL is the ideal storage solution for multi-stream, multi-user uncompressed SD/HD & 2K work flows. G-SPEED FC XL features dual-channel 4Gbit Fibre Channel connectivity and is available in 2U or 3U rack mountable enclosures with 12 or 16 Hitachi SATAII drives. G-SPEED FC XL and can be configured (via a front panel LCD or Web GUI) as a JBOD or in RAID levels 0, 1, 3, 5 or 6.
- G-SPEED FC XL Web GUI
G-SPEED FC XL Web GUI
This flexibility enables the system to be tuned to the required level of performance and fault-tolerance necessary to fully support your application.
G-SPEED FC XL is "SAN Ready" and is an affordable and simple way to deploy a fail-safe SAN or add additional high performance RAID storage to existing XSan2 / metaSAN networks. G-SPEED FC XL's built-in Web GUI is used to monitor the status of the system including power supply voltage, fan RPM and the temperature of the RAID controller & hard drives. In the event of a problem, G-SPEED FC XL can send an email message to up to four recipients.

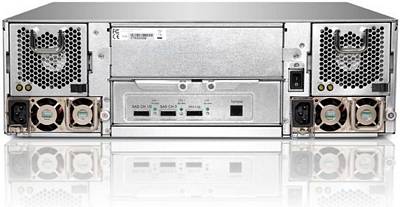

G-SPEED FC XL Rear View
Rear View of G-SPEED FC XL
G-SPEED FC XL supports the latest and greatest professional video editing equipment from AJA, Avid and Blackmagic Design. G-SPEED FC XL is compatible with SAN software including Xsan, metaSAN and StorNext.
High-speed, low-cost RAID designed specifically for professional content creation applications
Supports multi-stream ProRes 422 and uncompressed SD/HD & 2K DPX workflows
High-Performance, dual-channel 4Gbit Fibre Channel interface SFP to LC SAN Ready!
RAID controller w/512MB cache supports RAID levels 0, 1, 3, 5, 6 & JBOD
12-drive, 2U or 16-drive 3U rack mountable enclosure with hot-swappable Hitachi 7200 RPM, 3.5" 3Gbit SATA drives each with up to 32MB cache
Storage capacities up to 32TB per unit
Web-based configuration and management
Auto-rebuild and email notification
Removable cooling fans ensures reliable operation and data integrity
Standard dual redundant 460 W power supplies
Ships complete with 2x SFP to LC modules and (2) 2-meter optical cables
Mac OS X and Windows compatible
Standard 3-year factory warranty
The SAN Ready G-SPEED FC XL offers industry leading Fibre Channel performance and easily supports multi-stream ProRes, uncompressed HD and 2K Film video editing work flows. A 16-drive G-SPEED FC XL connected to a dual-channel 4 Gbit Fibre Channel host bus adapter will pump out over 550 MB/second to support the most demanding post production environments.
Specifications:
Kit Contents:
G-SPEED FC XL System
(12 or 16) Removable Disk Modules
Rackmounting Kit
Spare Cooling Fan
(2) AC Cables
(2) 3m LC to LC Optical Cable
(2) 4Gbit SFP
RS232 Cable
CD Manual
RAID Architecture: AMCC 64 bits processor Proprietary PCI-X 2.0 Polynomial ASIC to support high performance RAID 6 function
RAID Features: RAID levels 0, 1, 3, 5, 0+1, 6, & JBOD Multiple RAID selections
Online RAID level / stripe size migration
Online Array roaming
Online capacity expansion and RAID level migration simultaneously
Online volume set expansion
System Type: 3U Rack-Mount (XL16) 2U Rack-Mount (XL12)
Host Interface: Dual 4Gb FC channels
Disk Interface: 16 or 12 of SATA-II channels
RAID Management: Firmware embedded Web browser-based RAID manager via built-in 10/100 Ethernet port
Firmware embedded manger via RS-232 port
Firmware embedded manager through LCD control panel
Field-upgradeable firmware from flash ROM
Monitoring Indicators: All system status can be monitored via Firmware-embedded Web browser-based RAID manager
System status indication through LCD, LED and alarm buzzer
All system events can be sent to multiple user alerts via emails
Firmware embedded SNMP agent allows remote to monitor events through LAN with no SNMP agent required
Operating System: OS independent and transparent
Power Supply: Redundant, dual 460W power modules with PFC feature
