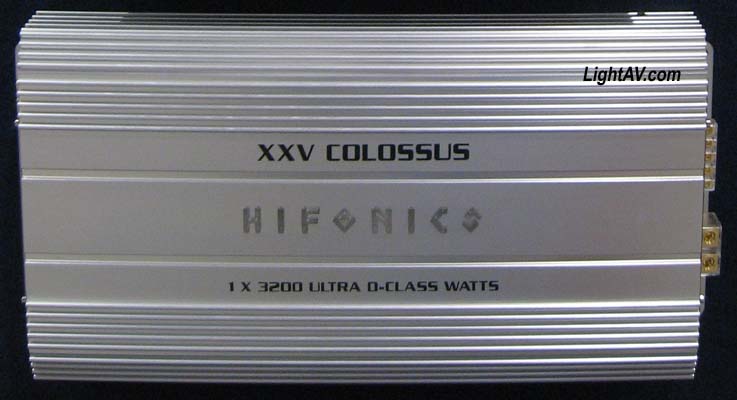

Generation XXV Highlights
1. 10-15% reduction in over all length, yet 20% more aluminum mass.
2. Operates up to 18 volts DC for 35% more RMS power than standard 14 volt DC.
3. Built in Parametric Bass EQ circuit for better tuning and control of amplifier output.
4. Pre-Clip, Soft-Clip and Hard-Clip visual indicators in both amplifier and bass remote. This will ensure that the consumer recognizes a potential issue and corrects it prior to any damage being done to their equipment.
5. 20% more output devices for increased power and efficiency.
6. Larger hand wound toroids for increased power and stability under maxximum load conditions.
7. The XXV series amplifiers feature an entirely new board layout and new Class D technology that has resulted in a substantial gain in efficiency as well as reliability.
8. Front Mount Controls on the class A/B XXV series
amplifier. This makes for much easier installation and adjustment to the sound system.
600 watts RMS x 2 channels into 4 Ohms (stereo)
1100 watts RMS x 2 channels into 2 Ohms (stereo)
1600 watts RMS x 2 channels into 2 Ohms (stereo)
2000 watts RMS x 1 channel into 4 Ohms (bridged)
3200 watts RMS x 1 channel into 2 Ohms (bridged)
Dimensions 11.81"W X 2.7" H X 21.26" L
Fuse Rating 300 Amps
14.4 Volts 4-Ohms 600 X 2
14.4 Volts 2-Ohms 1100 X 2
14.4 Volts 1-Ohm 1600 X 2
14.4 Volts 4-Ohms Bridged 2200 X 1
14.4 Volts 2-Ohms Bridged 3200 X 1
16 Volts 4-Ohms 900 X 2
16 Volts 2-Ohms 1400 X 2
16 Volts 1-Ohm 1900 X 2
16 Volts 4-Ohms Bridged 2800 x 1
16 Volts 2-Ohms Bridged 3800 x 1
