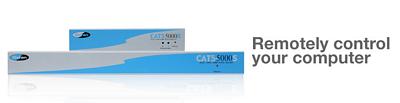

Gefen EXT-CAT5-5000 CAT 5 Dual Display Extension
|
EXT-CAT5-5000
|
Retail Price: $995.00
Thunder AV Price: $704.23
You Save: $290.77 (29 %)
Detailed Description
Computer Extension : the CAT5-5000/CAT5-5500
A Fundamental Dual-Display Extension Solution
Straightforward Way to Extend a Simple Dual-Display Workstation
The CAT5-5000 simply and efficiently extends two analog monitors, a USB-based keyboard/mouse and audio signals hundreds of feet from the computer using CAT5 cables. It comes in two versions: the CAT5-5000 sends video, audio and control signals up to 330-feet from the computer; the CAT5-5500 sends video, audio and control signals even further, up to 450-feet from the computer. Each model uses two CAT5 cables to transmit the signals. Both are designed for those who prefer to operate a dual-display computer workstation in a stable, quiet and secure location far away from the computer.
Compatibility
Both versions work with all CRT and LCD computer monitors, USB keyboards/mice and audio devices (Mac or PC).
How It Works
Both versions use a sender and receiver methodology to transmit signals from the computer to the workstation. The sender unit connects to the computer using the cables provided. The receiver unit connects to the two monitors, USB keyboard/mouse and audio devices up to 330-feet (CAT5-5000) or up to 450-feet (CAT5-5500) from the computer. Two CAT5 extension cables, sold separately, connect the sender to the receiver and thus the computer to the extended workstation. When fully powered and operational, the units extend all signals efficiently and reliably.
Features:
Extends any two VGA displays up to 330 feet
Maintains 1920 x 1200 resolution video
Extends USB 1.1 compliant devices up to 330 feet
Uses two CAT-5e cables
Sender rack ears included
Local video out
Specifications:
Video Amplifier Bandwidth: 350 MHz
Input Video Signal: 1.2 volts p-p
Input Sync Signal: 5 volts p-p (TTL)
Horizontal Frequency Range: 15 - 70 KHz
Vertical Frequency Range: 30 - 170 Hz
Video In: HD-15 male
Video out: HD-15 female
Audio Connector: mini-phone Stereo 3.5mm
Link Connector: RJ-45 Shielded
USB Input/Output Connectors: type B / type A
Power Supply: 5V DC
Power Consumption per unit: 20 watts (max)
Dimensions (Sender): 17" W x 1.6" H x 4.2" D
Dimensions (Receiver): 8.5" W x 1.6" H x 4.2" D
Shipping Weight: 8 lbs.
