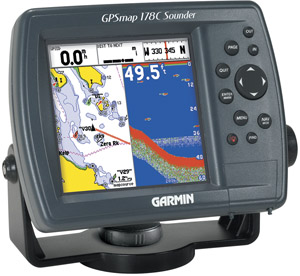

New-generation, fully-integrated chart plotter & powerful sonar, offering the same powerful features & simple interface as
the GRM0032700all in a compact, value-priced console
320 x 320-pixel, 256-color CSTN screen with adjustable
CCFL backlight
3.2"W x 3.2"H (4.5" diagonal) viewing area
State-of-the-art
200 MHz processor makes data acquisition, panning & zooming virtually instantaneous
Choose either a dual-frequency
50/200 kHz transducer for offshore boating or a single-frequency 200 kHz transducer for inland lakes & bays
See-Thru technology (which separates fish from thermoclines & structure) & Depth Control Gain (DCG) for detailed
images of structure & bottom densities
New digital display technology offers an easy-to-read, semi-transparent digital
readout that allows users to see sonar images behind the data
User waypoints are automatically tagged with the date
& time of creation, as well as water temperature & depthvital information for serious anglers
10,000 active track points
& 700 saved track points; database information can be stored on removable data cards & transferred to a PC or another unit
Sends, receives & displays positioning data with DSC equipped VHF radios
TracBack mode enables guiding along a route
Tracklines can be color-coded for trolling or cruising applications
Internal antenna with single-frequency transducer 500W RMS, 4000W PTP output with dual-frequency transducer
400W RMS, 3200W PTP output with single-frequency transducer
Adjustable range, gain, zoom & bottom lock
Temperature log
maintains a graphical record of temperature data
Shallow-water, deep-water, fish-by-size, timer, low-battery voltage, anchor-drag, arrival, off-course, proximity-waypoint & clock alarms
Water temperature & fish ID with depth alarms
Dim: 4.9"H x 6.3"W x 3.7"D
