* 600 Watts RMS built-in Class "D" amplifier (same amplifier for 10", 12" and 15" models, excludes MiniMe)
* Patented passive radiator technology
* Available Sizes: 10", 12" and 15"
* Available Finishes: Piano Black, Cherry Wood Veneer, Black Ash
* Wood Veneer and the original Poly Grip Tough Shell Finish (check for availability on Tough Shell finished items).

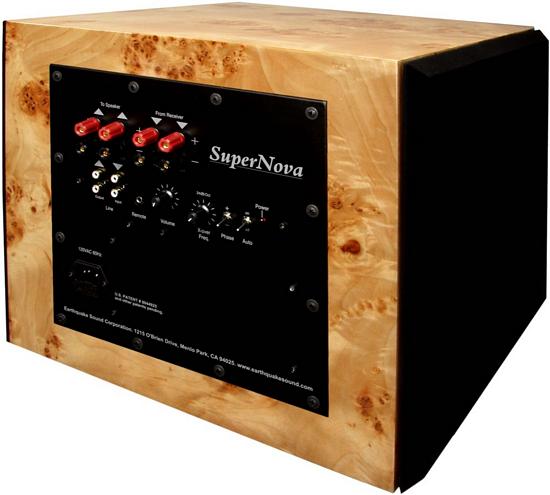

1 - Patented SLAPS (Symmetrically Loaded Audio Passive System)
2 - Volume control
3 - Remote control detection
4 - Low level RCA inputs and outputs
5 - High level inputs and outputs
6 - ON/OFF switch w/ auto ON option
7 - Phase flip switch
8 - 24dB variable crossover

Earthquake's SLAPS Passive Radiator
Earthquake's patented symmetrically loaded passive radiator allows the user to enjoy the benefits of deep bass and the full impact of sound effects without having to put up with a giant eyesore in the room. SLAPS lets Earthquake subwooofers go very low without having to increase enclosure volume. SLAPS can be used in car as well as in home-audio applications. Wherever subwoofers must be tuned to a low frequency without increasing the enclosure volume, and without the need to deal with the traditional shortcomings of port tuning such as port noise, port length, and availability.

Earthquake's Overdrive
Overdrive is a patented feature that allows the Supernova amplifier to generate maximum output with virtually any level of input audio signal.

Earthquake's Optical Distortion Limiting Circuitry (ODL):
ODL was created to eliminate audio amplifier input stage clipping without distorting the audio signal.

What is a Supernova?

MKV: The Reining Champion
Feast your ears and please your eyes... Earthquake's Supernova MKV subwoofer is the product of meticulous engineering, detailed craftsmanship, and passion for performance all geared to please the audiophile in every one of us.

What Happens When Elegance Meets Performance?
Rich in heritage and design philosophy, Supernova subwoofers have set standards that conventional subwoofer could never match. Over 20 years of collective experience in generating bass propels Supernova technology beyond the reach of others in the industry. Suffice it to say that Earthquake's Supernova subwoofer was ranked #1 when tested by five of the major leading home-audio magazines.

The finely finished, hand-crafted piano-black Supernovas house the most advanced type of digital amplifier (producing 600 watts of thundering bass power) coupled with Earthquake's SLAPS passive technology and more than 3 inches of excursion.

Frequency Response: 18Hz - 145Hz
Amplifier Power / Type: 1200 Watts Class "D"
Input Impedance: 6 kOhm
Driver: 12" High Power Earthquake Magma Subwoofer
Passive Radiator: 12" Patented SLAPS Symmetrically Loaded Audio Passive System
Enclosure Type: Sealed With Passive Radiator
Dimensions: 16" x 15 3/4" x 13 3/4"
Finish: Classic (Polyurethane), Piano Black, Black-Ash Wood Veneer and
Cherry Wood Veneer
Weight: Classic = 74 Lbs. All Others = 90 Lbs.
