FIRST COMBINATION VHF AND GMRS IN THE WORLD
Works with other VHF, GMRS and FRS Radios
Cobra Exclusive: Rewind Say AgainTM (Replay Missed Calls!)

Features For The MR HH425LI VP:
Cobra Marine Professional Series VHF Radio Features
VHF

Unique Compact Design
Submersible to JIS7 Standards
Tri-Watch and Unlimited Memory
Powerful Lithium Ion Battery
All Accessories Included
External Speakers/Mic Jack
Selectable Power Output-1,3 or 5 Watts
Large Illuminated Display (Up to 60% Larger than the Competition)
All 10 NOAA/Weather Channels -With Same Alert Filtering (24 Hour All Hazards Alert)
Signal Strength Meter (Transmit and Receive Signal Bars)
Illuminated Function Keys
Instant Channel 16/9
Spring Loaded Belt Clip
3 Year Warranty
All Terrain Radio

GMRS
From the World Leader in GMRS/FRS Radios: Cobra GMRS Radio Features:
First Marine Radio with 5 Watts of Transmit Power on GMRS Channels
(Some competitors transmit at 0.5 watts on the Low Power FRS Channels)
15 GMRS Channels
121 Privacy Codes on Each Channel
A total of 1815 Privacy Combinations
VibrAlert:
VOX (Hands Free Operation)
Scan (Channel/Privacy Codes/Memory)
Unlimited Channel Memory

* Units sold in Canada will not transmit using 5 Watts on GMRS channels.

Specifications
Feature Benefit
Dual Band Receive and Transmit One button allows you to switch from the GMRS to VHF Bands. You can talk to GMRS users on the dock or ashore and easily switch to the VHF Band for routine or emergency vessel to vessel or vessel to shore communications. One BAND key switches you between bands.
1, 3 or 5* Watts Flexible output power for short and long range communication.*
Cobra Exclusive Rewind-Say-AgainTM Feature Not quite sure if the call was for you? Push the REWIND key to play back up to the last 20 seconds of audio. Other bonus recording features included.
All NOAA Weather Channels Instant access to national all hazards and weather information, 24 hours a day.
Weather Alert With S.A.M.E Alerts with an audible tone and visual alarm only if threatening weather is nearby. S.A.M.E. (Specific Area message Encoding) allows setting your local area and filtering out warnings from further away.
Speaker/Mic Jack Allows connecting optional Cobra Lapel Speaker/Mic and other Cobra accessories.
Instant Channel 16/9 Instant access to channel 16 and channel 9 for emergency situations.
Unlimited Channel Memory Allows memory programming for between 0 and 99 channels. Up to all of the VHF and GMRS channels can be placed in memory.
Lithium Ion Polymer Battery Lithium-Ion Polymer Battery allows for longer talk times, more successful charging seasons and maintenance free operation.
Scan Scan all channels in Band to find conversations in progress.
Memory Scan Scan channels programmed in memory to find conversations in progress. Cross-Band-Scanning allowing scanning for conversations on both VHF and GMRS channels.
Signal Strength Meter Shows the strength of incoming or outgoing signals.
Button/Key Lock Locks function buttons/keys to eliminate accidental change of settings.
Battery Tray With Charge Contacts Allows charging of batteries by simply dropping in the cradle.
Illuminated Function Keys Allows high visibility of function keys.
Illuminated Function Keys Allows high visibility of function keys.
Keystroke Tone Signal (selectable) Confirms key activation. This feature is selectable and can be turned on or off.
Illuminated LCD Display:Large Allows high visibility of display. Up to 60% larger than the competition.
Battery Saver Circuitry A unique circuit extends the life of the batteries. If there are no transmissions within 10 seconds, the unit will automatically switch to battery saver mode.
10 Selectable Call Tones Allows the user to differentiate between up to 10 different parties on incoming calls.
Roger Beep Tone (selectable) Confirmation tone indicates the completion of the user's transmission, and signals to others it is clear to talk. This feature is selectable and can be turned on or off. The default is off.
Patented VibrAlert Provides a silent alert for incoming calls. Ideal for noisy or all-quiet environments.
Submersible Meets JIS7 standards; Submersible for 30 minutes in one meter deep water.
3 Year Warranty (on radio) For products sold in the U.S.A.

VHF Band Feature Benefits
U.S.A., Canada & International Channels Allows operation on any of the three (3) different channel maps established for these areas.
Tri-Watch Monitors three (3) channels at once- Emergency Channel 16 in the VHF Band and two (2) user selected channels.
Instant Channel 16/9 Instant access to channel 16 and channel 9 for emergency situations.

GMRS Band Feature Benefit
UHF/FM Ultra-clear long distance reception. 1815 combinations are possible when the 15 channels are combined with the 121 privacy codes.
VOX The user's voice is detected and the radio transmits without the need to press any buttons, freeing hands for other tasks. 5 VOX sensitivity levels allow the user to select at which point the radio will detect their voice.
Advanced GMRS Scan Allows the user to scan either channels, CTCSS privacy codes within a channel, DCS codes within a channel, or up to 10 memory locations to locate conversations in progress.

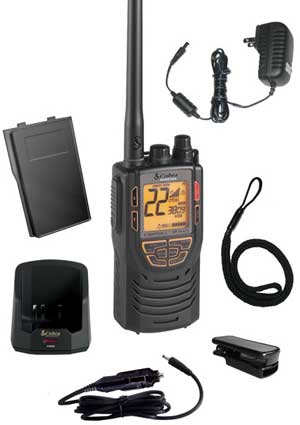

Included Accessories
AA Alkaline Battery Tray
CM 110-011) Included with the 425 models. Allows using 6AA Alkaline Batteries to transmit in an emergency at full power. * Note - Some competitive models only allow for partial power transmit using Alkaline batteries.
LiON Battery Pack (CM 110-010) 1900 mAh High Capacity Lithium-Ion Battery allows for longer talk times, more successful charging.
Rapid-Charge Locking Desktop Charger (CM 110-008) Allows charging of batteries at home, car or boat. 12 volt vehicle adapter, AC wall adapter and mounting hardware included. 3-4 Hour Charge. Vertical or horizontal mounting.
Swiveling Spring Loaded Belt Clip (CM 240-003) Secures the radio while on the go. Commercial quality belt clip.
Wrist Strap (CM 230-002) For ease of carrying and securing while on the go.
AC Adapter (CM 120-006) 110V AC Adapter with U.S.A. plug. Allows for charging at home or on AC equipped boats.
DC Adapter (CM 130-002) 12V Accessory Port Adapter. Allows for charging on the DC system of smaller boats.

Optional Accessories
Lapel Speaker/Mic (CM 330-001) Handheld mic for remote operation while the radio is on your belt.
Replacement or Secondary Lithium-Ion`` Battery Pack (CM 110-010) 1900 mAh High Capacity Lithium-Ion Polymer Battery
CM 110-011 Optional alkaline battery tray. (for AA Alkaline battery use)

Specifications
General
Number of Channels VHF All: U.S.A., Canadian, International 10 NOAA/Weather Channels, GMRS- 15 Channels
Channel Spacing VHF- 25 kHz Max., GMRS- 12.5 KHz
Modulation VHF- 5 kHz Max., GMRS- 2.5 KHz
Input Voltage 7.2 VDC
Battery Life 5:5:90 Stand-by
Alkaline Battery
20 Hours @ 5 Watts
35 Hours @1 Watt
Included Battery
14 Hours @ 5 Watts
23.5 Hours@ 1 Watt
Battery Requirements Cobra*reg; CM 110-010 LiON Battery (included) or 6 AA alkaline batteries (not included)
Temperature Range -20C to 50C
Unit Dimensions 4.8" x 2.4" x 1.4" (123 mm x 62 mm x 36 mm)
Not including antenna
Unit Weight (Lbs) 0 lbs. 8 oz. (228g)

Receiver
Frequency Range VHF- 156.050 to 163.275 MHz
GMRS- 462.550 to 467.7125 MHz
Receiver Type Double Conversion Super-Heterodyne
Sensitivity:
20 dB Quieting 0.35 uV
0.30 uV
Adjacent Channel Selectivity -60 dB
Intermodulation and Rejection -60 dB
Spurious & Image Rejection -60 dB
AF Output 250mW @ 8 Ohms

Transmitter
Frequency Range VHF- 156.025 to 157.425 MHz
GMRS- 462.550 to 467.7125 MHz
RF Output Power 1,3 or 5 Watts
Spurious Emissions Less than 55 dB for VHF and GMRS
Frequency Stability +/- 10 ppm
FM Hum & Noise 40 dB
