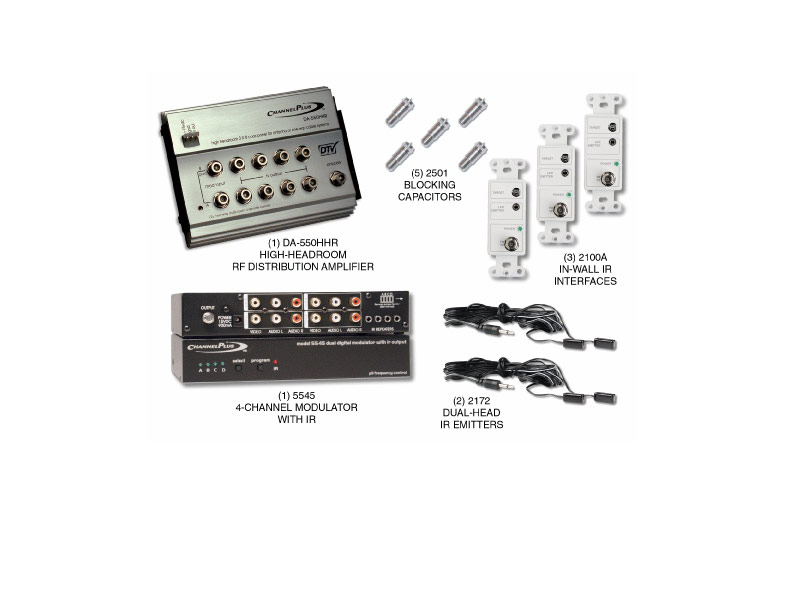

The Model 5555HHR High-headroom RF Distribution Kit with 12-volt IR System offers many of the basic components needed to assemble an eight room TV distribution system. The kit includes:

(1) - Model DA-550HHR: High-Headroom RF Distribution Amplifier with 12-Volt IR
(1) - Model 5545: 4-Channel Modulator with IR
(3) - Model 2100A: In-Wall Interfaces
(2) - Model 2172: Dual-Head IR Emitters
(5) - Model 2501-10: DC Blocking Capacitors
The kit provides eight rooms of amplified off-air antenna or one-way cable TV distribution from the Model DA-550HHR amplifier; four injected TV channels from the Model 5545 modulator, IR control of four audio/video source components with the two Model 2172 dual-head IR emitters; three rooms of wall plate termination with IR target and emitter jacks with the Model 2100A in-wall IR interfaces (Model 2130A or Model 2132 set-top IR targets not included); and five rooms without IR control using the Model 2501 blocking capacitors.

Features
Four modulated TV channels create TV channels for cameras or other video sources
IR remote control signals from IR targets pass back through the system coax to IR emitters
In-wall interfaces fit Decora style wall plates for a professional looking installation
Easily expandable with additional ChannelPlus components
