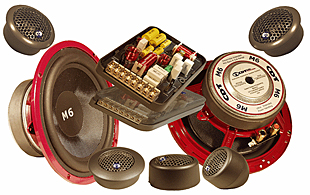

CDT Audio HD-62US/M6 6.75" M6 cast mid, 200US UpStage xover 2 pair DRT-26 1" tweeter HD-Series High Definition Component Series/pr

CDT Audio Car

HD-62US/M6

CDT Audio HD-62US/M6 6.75" M6 cast midbass, 200US UpStage xover 2 pair DRT-26 1" tweeter HD-Series High Definition Component Set /pr

HD-62US/M6

Thunder AV Price: $599.99

Quantity:

Add to a new shopping list

Detailed Description

The Complete UpStage System components:
The speakers in any system establish the basis for the quality of sound. After all, if the speakers themselves aren't of the best quality by design -the music, no matter how pure, will get lost in the transfer. Good speaker engineering doesn't happen by accident. The CDT drivers are no exception. The first aspect to examine is the moving parts of the speaker. The cone, spider, surround, and voice coil. The cone of the CDT midrange drivers is made of a light, yet rigid, carbon treated paper.

It's made with a special Compound Curve design to allow for the proprietary CDT or Contoured Dispersion Technology that is unique to the CDT System drivers. Besides the special cone design, the drivers also use highly damped butyl rubber surrounds to reduce vibration from the frame, as well as allow for precise and linear excursion of the cone. At the bottom of the cone is the other suspension component, the spider. We use a flat spider design to allow for more precise movement and return of the aluminum voice coil assemblies during critical transients,
In fact, our midrange speakers are so efficient, they can play much higher into the midrange frequencies than almost ANY OTHER CAR SPEAKER! Smooth response to 7kHz - 6 1/2 octave!

This makes the blend between? the midrange and the Tweeter seem almost transparent because it's beyond the troubled range of 2- 4kHz where most systems are plagued with phasing problems between both speakers at the crossover point. The CDT drivers also have an equally impressive number of non-moving parts - the frame, magnet, and top plate.

The frame is made from a magnetically resistant cast aluminum which has both unparalleled strength and heat dissipation capabilities.

The top plate design, along with the precision ground, grain-oriented barium ferrite magnet assemblies, keep the electrical energy focused in a controlled area of the magnetic gap. All of these things help keep the precise movements of the cone linear and correct.

These help to create the Contoured Dispersion Technology that makes such an audible difference, producing unrivaled midrange that is engineered just for your car - certainly one of the toughest challenges of any car speaker system. The CDT DRT-25 Tweeters are also unique. They are a 25 mm (1") silk dome design with a neodymium magnet and ferrofluid filled voice coil gap to give sound and power handling that typically requires a much larger speaker. This, along with the unique "Phase Perfect" 60 dB. high-definition passive crossovers and the extended midrange response of the midrange drivers, provides a Tweeter that is sweet sounding, yet powerful - in a small, unobtrusive package.

The Complete UpStage ES-200US 2-way xover:

This compact silver bullet module implements the image enhancing StageFront Technology Upstage system while holding complexity to an absolute minimum. This versatile crossover module implements a two-way crossover with large high quality parts or alternately may be programmed to drive an upstage high-mounted second Tweeter. This dual functionality is jumper selectable. In simple two-way mode the tapped inductor design in the Satnet 560 is used. Dual jumpers moved together change the crossover to upstage mode. In the upstage mode the drive to the mid-woofer and Tweeter are tapered off to interface with the upstage Tweeter. This tapering is adjustable with three ?L settings and two ?C settings. This alters the crossover frequency and response shape (damping). The image Tweeter furthermore has seven selectable levels available. Upstage crossover is typically at 8kHz. Main Tweeter crossover is transient optimized at 3.7kHz. No protectors are used.

The Complete UpStage Modular Quick Connect Imaging Tweeter

Characteristics:

The three modular imaging UpStage Tweeters are provided with special mounting options for installation in doors, on the dash and the A-Pillar area.

These are available in any or all of three types:

A. Silk

B. Aluminum

C. Titanium

Each type has slightly different qualities. All are virtuous but there is a different emphasis.

The Silk dome is the smoothest. Always gentle and forgiving, this Tweeter emphasizes the music and avoids noise and artifacts that may embed some source material or be characteristic of less than perfect amplifiers. Very low listening fatigue and an easy quality that puts an emphasis on the systems midrange.

The Aluminum is more aggressive at retrieving fine detail. Cleaner and more revealing than the silk but more critical also. The lower end (in a Tweeter) is perhaps the lowest in distortion. The all-around choice.

The Titanium is the speed demon. For those who demand the maximum air and energy the Titanium takes the top end into the violet. Very critical and revealing of high end details.The trio may be snapped into the same housing for an instant A-B.

Midrange: M6 Driver 6.75" Cast alloy carbon treated cone.

Crossover: ES-200US Transient Optimized Elliptic 4th order 2-way with Built-in UpStage design.

Mounting depth: 2 3/4

UpStage Tweeter: DRT-26 extended range modular 1" silk Tweeter.

Aluminum and titanium twtr drivers optional.

Power handling: 200 wtt RMS @ 100Hz High Pass.

Frequency response: 65-20kHz.

Sensitivity: 92.6 dB.

Impedance: 4 Ohm.

Surface & flush mount Tweeter for UpStage mount.

Main Tweeter: DRT-25 extended range 1" silk Tweeter.

Flush angled mount included.
