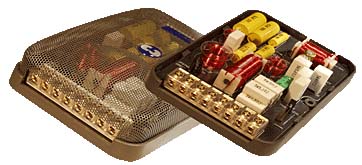

CDT Audio ES-200US 4th/5th order Built-in UpStage 2-way xover

ES-200US

Thunder AV Price: $249.99

Quantity:

Add to a new shopping list

Detailed Description

2-way Complete UpStage crossover Create a superior live event listening experience in vehicles of all types!

This compact UpStage ready xover module implements the image enhancing upstage system while holding complexity to an absolute minimum. This versatile crossover module implements the EX-560i two-way crossover with large high quality parts or alternately may be programmed to drive an upstage high-mounted second Tweeter.

This dual functionality is jumper selectable. In simple two-way mode the tapped inductor design Dual jumpers moved together change the crossover to upstage mode. In the upstage mode the drive to the mid-woofer and Tweeter are tapered off to interface with the upstage Tweeter. This tapering is adjustable with three L settings and two C settings. This alters the crossover frequency and response shape (damping). The image Tweeter furthermore has seven selectable levels available. Upstage crossover is typically at 8kHz. Main Tweeter crossover is transient optimized at 3.7kHz. No protectors are used.

Complete "UpStage" crossover

Technical specs and contents:

1 pr ES-200US "Transient Optimized" Elliptic 24dB xover

Built-in complete UpStage design.

Power handling: 200WRMS @ HPF 100Hz

Impedance: 4 Ohm.

12 gauge block terminals

Main tweeter attenuation

Image tweeter tuning adjustments

All Sound Above The Dash!

StageFront UpStage Ready System , remove the distracting and low image sound effects from your conventional systems drivers and move your sound onto a seamless sound stage directly in front of you up above the dash. Simple, Easy, Amazing! For the first time ever, car stereo audiophiles can enjoy a trueUpStage seamless sound stage directly in front of them up above the dashboard. A stereo image and a soundstage in their cars that is just as deep, wide and up above the dash and as stable as they are used to at a live concert and from serious high end home audio speakers. This incredibly up-high and stable image, comes from an amazing new design and engineering concept called StageFront technology. The new ES-200US xover has it all built in, 2-way Transient Optimized 24dB elliptic xover and UpStage design all in one xover unit.

Attending The Live Event The impact of StageFront technology UpStage System is immediately obvious - the voices and instruments seem to magically take shape in a seamless sound stage directly in front of you above the dash. The result is to create a listening experience that is much more like the experience of attending the live event - the musicians and sound sources seem to be arrayed in front of you as if you were sitting at the live concert first row. Several psycho-acoustic effects need to be accomplished in order for this to work so well.
