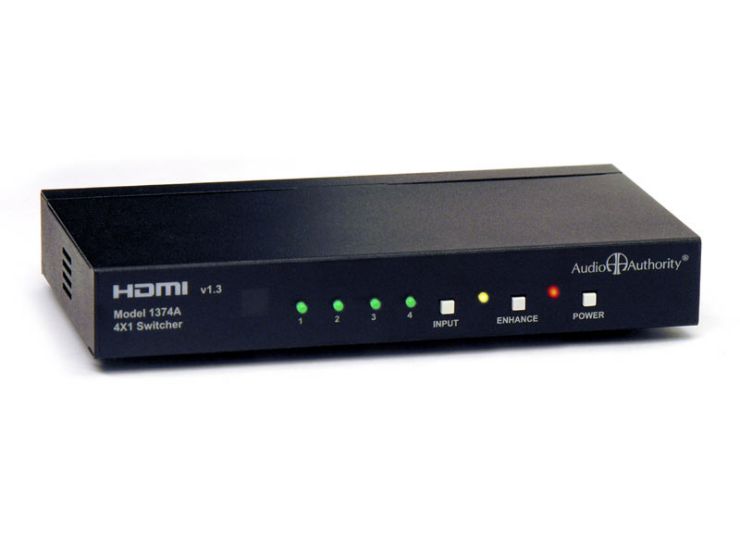

Audio Authority 1374A 4 x 1 1080P 1900 x 1200 at 60Hz HDMI Switcher
|
1374A
|
Retail Price: $219.95
Thunder AV Price: $149.49
You Save: $70.46 (32 %)
Detailed Description
This HDMI version 1.3 switcher allows multiple sources to feed a single display or signal distribution system. High performance HDMI chipsets provide industry-best reliability, interoperability, and picture quality. Fully HDCP compliant, and is ATC certified for compliance with the HDMI spec
Four HDMI inputs, one HDMI output. Includes an IR remote control and RS-232 control connection.
Overview
The Model 1374A switcher is designed to allow selection of 4 inputs for display on an HDMI compliant television or signal distribution system. This version 1.3 HDMI switcher supports all standard HDTV formats (such as 1080p/60), PC formats from 1024x768 through 1920x1200, and embedded HD-Audio. The switcher can be controlled via the front panel, the included infrared remote control and/or RS-232 control.
4x1 HDMI ver. 1.3 switcher
Up to 1080p HDMI video
Supports 36-bit Deep Color (sum of all channels)
Supports high bitrate lossless audio (including Dolby TrueHD and DTS-HD: Master Audio
Control via IR, RS-232, or front panel
Features
Key Features
4 inputs, 1 output (HDMI)
Supports HDTV resolutions up to 1080p and PC resolutions up to 1920 x 1200 @ 60Hz (WUXGA)
Passes High Bitrate HDMI Audio
Lip-sync compensation
Control via front panel buttons, IR remote control and RS-232 serial control port
HDMI certified, HDCP compliant, RoHS compliant
Compatible with today's 120 Hz high definition televisions
All metal construction
Video/Audio Inputs/Outputs:
HDMI (version 1.3): 4/1
What makes the 1374A Unique?
ATC Certification and full HDCP Compliance: Low-cost matrix systems aren't certified, and often don't conform to the HDMI and HDCP specifications, causing interoperability problems. Our HMX-144 is formally lab certified, and field tested for maximum performance and compatibility.
Silicon Image chipsets are the industry's finest, and allow full HDMI ver. 1.3 performance
Simple control, including discrete input selection via IR, RS-232, or front panel buttons
Specifications
Video Parameters
Video Formats: 480i/p, 576i/p, 720p, 1080i/p, VGA through UXGA
Color Processing: 36 bit Deep Color (12 bits per TMDS color channel)
Included Signal Enhancement circuit
Audio Parameters
Audio Processing: Dolby, DTS 32-192fs sample, LPCM 7.1 channel
Multi-channel Digital: Yes
Frequency Response: 10-50KHz
Miscellaneous
Dimensions (HxWxD, inches): 1.2 x 7.9 x 3.5
Shipping Weight: 2.3 lbs.
Product Weight: 1.88 lbs.
Data Rate: 2.25Gbps (single link)
Signal Processing: Compensated, clock phase adjusted
Jitter Processing: Reconstituted signal; jitter free
TMDS Clock Speed: 225MHz
Maximum Cable Length: Input - 20m (66 ft.) @ 1080p/8 bit; Output - 15m (49 ft.) @ 1080p/8 bit
Agency Approvals: FCC, CE, RoHS
DC Input Connector: locking type
In the Box
IR remote control
Power Supply
Jack screws for locking HDMI ports
User Manual
