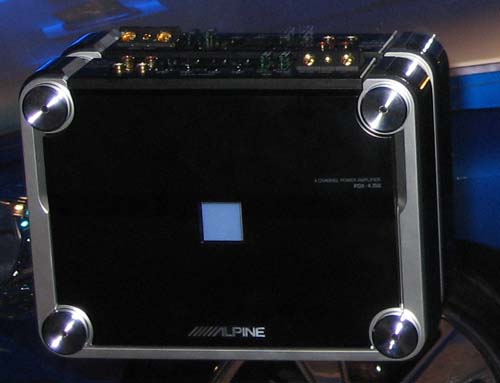

Class-D
4/3/2 Channel Operation
Stackable Installation Design
Thermal Management Processor
Adjustable Crossover (HP/LP)
MOSFET Power Supply
DC-DC PWM Power Supply
MOSFET Final Outputs
STAR Circuitry
Auto Over-Current Protection
Top Mounted Blue LED Power/Status Indicator
Integrated Wire and Mounting Screw Terminals
Input Channel Selector
Input Mode Selector Switch
One Side Terminal Layout
Gold Plated RCA Input Connectors
Continuously Adjustable Gain Control
Gold Plated Power Screw Terminals
4-Layer Glass Epoxy PC Board
Speaker Quick Connect
SPECIFICATIONS
CEA-2006 Power Rating
CEA-2006 Power Rating (40hm@14.4V = 1%THD+N), S/N 78dBA (Ref. 1W into 4Ohm): 150W x 4
Bass Engine Sound Tuning
Crossover Frequency : 30Hz-400Hz HP/LP/Off (-12dB/oct)
Dimensions
Heat Sink (WxHxD) in: 10-3/16" x 7-9/16" x 2-7/16"
Heat Sink (WxHxD) mm: 257mm x 192mm x 62mm
General
Power Requirements: 14.4V DC (11V to 16V)
Frequency Response: 10Hz - 50kHz (+0,-1dB)
Signal to Noise (S/N): 100dBA (Reference to Rated Power)
Input Sensitivity (For Rated Power): 0.2V to 4.0V (1.0 at Center Detent)
Input Impedance: 10k Ohm
Speaker Impedance: 4 or 2 ohm Bridged
