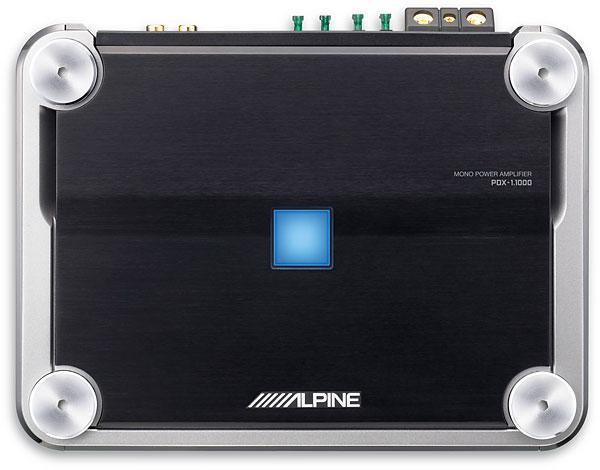

Alpine PDX-1.1000 1000 Watt RMS Mono Digital Amplifier Stackable
|
PDX-1.1000
|
Thunder AV Price: Discontinued
Detailed Description
Class-D
1 Channel (Mono) Operation
Stackable Installation Design
Thermal Management Processor
Subsonic Filter
Adjustable Crossover (LP)
MOSFET Power Supply
DC-DC PWM Power Supply
Discrete Pre-Amp Stage
MOSFET Final Outputs
STAR Circuitry
Auto Over-Current Protection
Top Mounted Blue LED Power/Status Indicator
Integrated Wire and Mounting Screw Terminals
One Side Terminal Layout
Gold Plated RCA Input Connectors
Continuously Adjustable Gain Control
Gold Plated Power Screw Terminals
Non-Fading Pre-Amp Output
4-Layer Glass Epoxy PC Board
Speaker Quick Connect
SPECIFICATIONS
CEA-2006 Power Rating
CEA-2006 Power Rating (40hm@14.4V = 1%THD+N), S/N 80dBA (Ref. 1W into 4Ohm): 1000W x 1
Bass Engine Sound Tuning
Crossover Frequency : 50Hz-200Hz, -24dB oct (LP)
Subsonic Filter (Selectable): 15Hz/30Hz/Off
Dimensions
Heat Sink (WxHxD) in: 10-3/16" x 7-9/16" x 2-7/16"
Heat Sink (WxHxD) mm: 257mm x 192mm x 62mm
General
Power Requirements: 14.4V DC (11V to 16V)
Frequency Response: 20Hz - 200Hz (20Hz/-3dB)
Signal to Noise (S/N): 100dBA (Reference to Rated Power)
Input Sensitivity (For Rated Power): 0.1 V to 8.0V
Input Impedance: 10k Ohm
Speaker Impedance: 4 or 2 ohm Bridged
